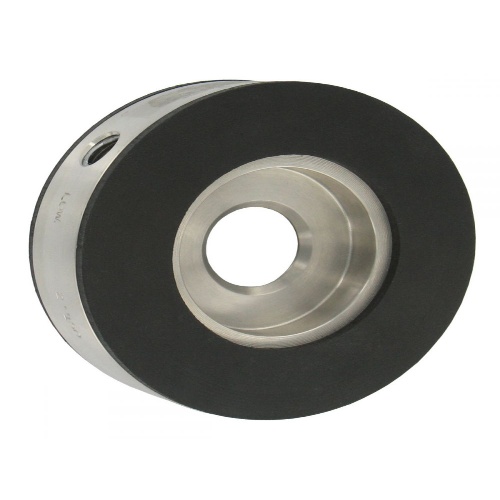

Dwyer OP-O-3 Orifice Plate Flowmeter
$2,595$3,114 (-17%)
Dwyer OP-O-3 Orifice Plate Flowmeter is a reliable and accurate solution for measuring the flow of compatible liquids and gases. With a temperature range of -50 to 200°F (-45 to 93°C) and an accuracy of ±0.6% full scale flow, this flowmeter is suitable for a variety of applications. Its wetted material is constructed…
Dwyer OP-O-3 Orifice Plate Flowmeter is a reliable and accurate solution for measuring the flow of compatible liquids and gases. With a temperature range of -50 to 200°F (-45 to 93°C) and an accuracy of ±0.6% full scale flow, this flowmeter is suitable for a variety of applications. Its wetted material is constructed of 304 SS and Buna-N gaskets, ensuring durability. The flowmeter has a pressure limit of 150 psi and a process connection of 1/4" female NPT. It is available in line sizes ranging from 1/2" to 24", with installation using a standard flange 125#/150# rating. With a head loss calculation of 1 – Beta ratio², it provides accurate results while minimizing pressure drop. Additionally, it complies with general pipe requirements, requiring 10 diameter upstream and 5 diameter downstream space.
Specifications
| (Instrument-Sensor) Application | Liquid |
|---|---|
| (Instrument-Sensor) Application | Gas |
| Component | Flow Meter |
| (Instrument-Sensor) Type | Orifice Plate |
| (Instrument-Sensor) Measurement Accuracy | 0.60% |
| (Instrument-Sensor) Temperature Range | -50 – 200°F/-45 – 93°C |
| Manufacturer | Dwyer Instruments |
Features
Mounted with standard flanges with no need of specialty flanges
Reduced installation costs with simple installation by slipping the unit between standard flanges
Easy access with corner type metering taps
Long operation life with corrosion free material
Stainless steel wetted parts assures long term reliability and accuracy
Proven through a wide range of applications for energy efficiency
