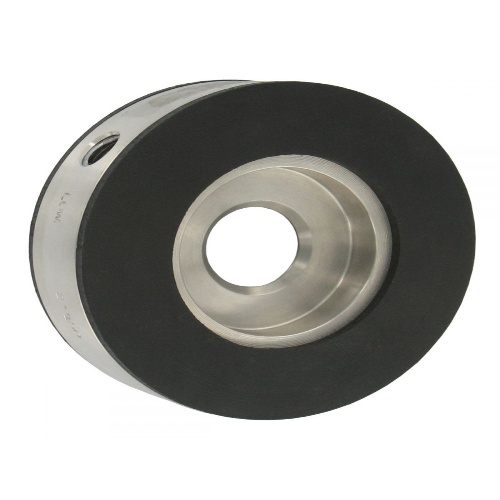

Dwyer OP-Q-1 Orifice Plate Flowmeter
$5,422
Dwyer OP-Q-1 Orifice Plate Flowmeter. This versatile flowmeter is designed for use with compatible liquids and gases. With a temperature range of -50 to 200°F (-45 to 93°C), it offers accurate readings of ±0.6% full scale flow. The wetted materials include 304 SS and Buna-N gaskets, ensuring durability. It has a…
Dwyer OP-Q-1 Orifice Plate Flowmeter. This versatile flowmeter is designed for use with compatible liquids and gases. With a temperature range of -50 to 200°F (-45 to 93°C), it offers accurate readings of ±0.6% full scale flow. The wetted materials include 304 SS and Buna-N gaskets, ensuring durability. It has a pressure limit of 150 psi and features a 1/4" female NPT process connection. The installation is hassle-free with a standard flange 125#/150# rating. The head loss is efficiently calculated using the Beta ratio. Pipe requirements include a 10 diameter upstream and 5 diameter downstream.
Specifications
| (Instrument-Sensor) Application | Liquid |
|---|---|
| (Instrument-Sensor) Application | Gas |
| Component | Flow Meter |
| (Instrument-Sensor) Type | Orifice Plate |
| (Instrument-Sensor) Measurement Accuracy | 0.60% |
| (Instrument-Sensor) Temperature Range | -50 – 200°F/-45 – 93°C |
| Manufacturer | Dwyer Instruments |
Features
Mounted with standard flanges with no need of specialty flanges
Reduced installation costs with simple installation by slipping the unit between standard flanges
Easy access with corner type metering taps
Long operation life with corrosion free material
Stainless steel wetted parts assures long term reliability and accuracy
Proven through a wide range of applications for energy efficiency
