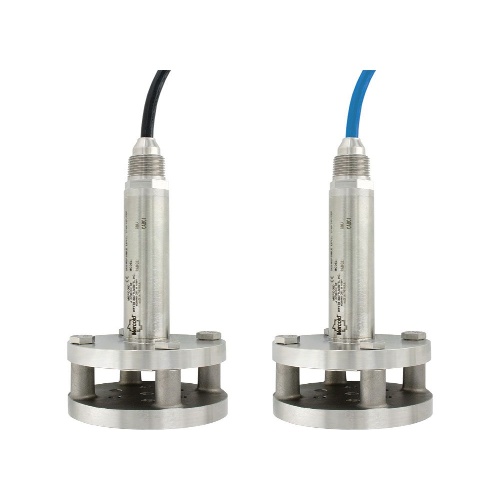

Dwyer PBLT2-15-100 Submersible Level Transmitter
$1,142$1,371 (-17%)
Dwyer PBLT2-15-100 Submersible Level Transmitter is a reliable and accurate solution for measuring liquid levels. With a temperature range of -18 to 93°C, it offers high precision (±0.25% FS) and quick response time (50 msec). It is designed for use in hazardous locations and can withstand pressure up to 2X FS. The…
Dwyer PBLT2-15-100 Submersible Level Transmitter is a reliable and accurate solution for measuring liquid levels. With a temperature range of -18 to 93°C, it offers high precision (±0.25% FS) and quick response time (50 msec). It is designed for use in hazardous locations and can withstand pressure up to 2X FS. The 316 SS body and polyurethane/ETFE cable ensure durability, while the 4-20mA output signal and wire pigtail connection provide easy integration.
Specifications
| Component | Submersible Level Transmitter |
|---|---|
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
| (Instrument-Sensor) IP Protection | IP68 |
| (Instrument-Sensor) Application | Liquid |
| Manufacturer | Dwyer Instruments |
| (Instrument – Sensor) Supply Voltage | 10 – 28 VDC |
| (Instrument – Sensor) Supply Voltage | 13 – 30 VDC |
| (Instrument-Sensor) Temperature Range | -4 – 176 °F/-20 – 80°C |
| (Instrument-Sensor) Temperature Range | 0 – 200 °F/-18 – 93°C |
| (Instrument-Sensor) Temperature Range | -4 – 149 °F/-20 – 65°C |
Features
Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids
Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier
Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility
Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation
Minimal downtime with standard 72 hour lead time
