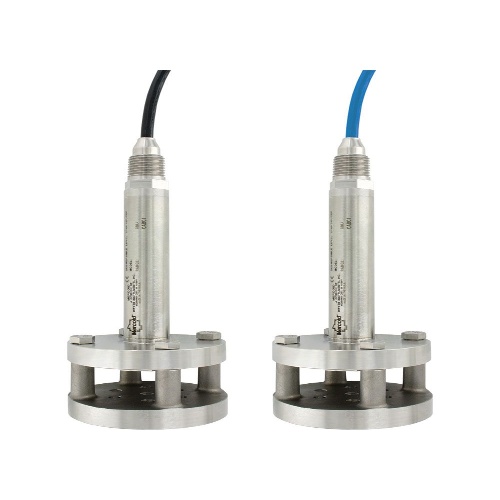

Dwyer PBLT2-15-150 Submersible Level Transmitter
$1,458$1,750 (-17%)
Dwyer PBLT2-15-150 is a submersible level transmitter with a temperature range of 0 to 200°F (-18 to 93°C). It offers an accuracy of ±0.25% FS and requires a power supply of 13 to 30 VDC. The unit has a response time of 50 msec and an IP68 enclosure rating. It has a 4 to 20 mA DC output signal and is designed for use…
Dwyer PBLT2-15-150 is a submersible level transmitter with a temperature range of 0 to 200°F (-18 to 93°C). It offers an accuracy of ±0.25% FS and requires a power supply of 13 to 30 VDC. The unit has a response time of 50 msec and an IP68 enclosure rating. It has a 4 to 20 mA DC output signal and is designed for use with compatible liquids. The transmitter is mounted below the level being measured and features a body made of 316 SS or 316L SS. It has a pressure limit of 2X FS. The transmitter is suitable for hazardous locations and provides lightning and surge protection.
Specifications
| Component | Submersible Level Transmitter |
|---|---|
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
| (Instrument-Sensor) IP Protection | IP68 |
| (Instrument-Sensor) Application | Liquid |
| Manufacturer | Dwyer Instruments |
| (Instrument – Sensor) Supply Voltage | 10 – 28 VDC |
| (Instrument – Sensor) Supply Voltage | 13 – 30 VDC |
| (Instrument-Sensor) Temperature Range | -4 – 176 °F/-20 – 80°C |
| (Instrument-Sensor) Temperature Range | 0 – 200 °F/-18 – 93°C |
| (Instrument-Sensor) Temperature Range | -4 – 149 °F/-20 – 65°C |
Features
Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids
Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier
Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility
Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation
Minimal downtime with standard 72 hour lead time
