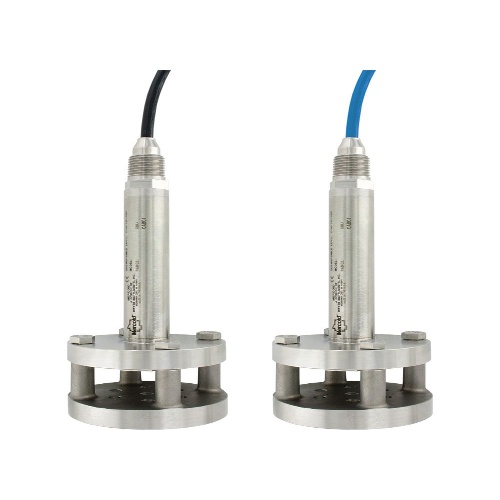

Dwyer PBLT2-15-80 Submersible Level Transmitter
$1,016$1,219 (-17%)
Dwyer PBLT2-15-80 is a submersible level transmitter suitable for hazardous locations. It has a temperature range of 0 to 200°F (-18 to 93°C) and a ±0.25% FS accuracy. The transmitter operates on a power supply of 13 to 30 VDC and has a quick response time of 50 msec. It features an IP68 enclosure rating and offers a…
Dwyer PBLT2-15-80 is a submersible level transmitter suitable for hazardous locations. It has a temperature range of 0 to 200°F (-18 to 93°C) and a ±0.25% FS accuracy. The transmitter operates on a power supply of 13 to 30 VDC and has a quick response time of 50 msec. It features an IP68 enclosure rating and offers a 4 to 20 mA DC output signal. The unit is designed to be suspended in the tank below the level being measured and is compatible with various liquids. The wetted materials include 316 SS, 316L SS, and fluoroelastomer seals. The pressure limit is 2X FS, and the thermal effect is ±0.02% FS/°F. The transmitter is protected against lightning and surges (PBLT2) and has a loop resistance of 900 Ω.
Specifications
| Component | Submersible Level Transmitter |
|---|---|
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
| (Instrument-Sensor) IP Protection | IP68 |
| (Instrument-Sensor) Application | Liquid |
| Manufacturer | Dwyer Instruments |
| (Instrument – Sensor) Supply Voltage | 10 – 28 VDC |
| (Instrument – Sensor) Supply Voltage | 13 – 30 VDC |
| (Instrument-Sensor) Temperature Range | -4 – 176 °F/-20 – 80°C |
| (Instrument-Sensor) Temperature Range | 0 – 200 °F/-18 – 93°C |
| (Instrument-Sensor) Temperature Range | -4 – 149 °F/-20 – 65°C |
Features
Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids
Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier
Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility
Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation
Minimal downtime with standard 72 hour lead time
