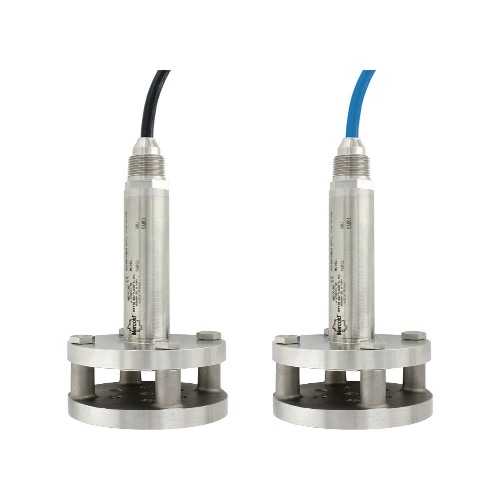

Dwyer PBLT2-20-100 Submersible Level Transmitter
$1,142$1,371 (-17%)
Dwyer PBLT2-20-100 is a submersible level transmitter suitable for measuring liquid levels. It has an accuracy of ±0.25% FS and a response time of 50 msec. It operates on a power requirement of 13 to 30 VDC for PBLT2 and 10 to 28 VDC for PBLTX. The transmitter is enclosed in an IP68-rated enclosure and has a wire…
Dwyer PBLT2-20-100 is a submersible level transmitter suitable for measuring liquid levels. It has an accuracy of ±0.25% FS and a response time of 50 msec. It operates on a power requirement of 13 to 30 VDC for PBLT2 and 10 to 28 VDC for PBLTX. The transmitter is enclosed in an IP68-rated enclosure and has a wire pigtail for electrical connections. It outputs a 4 to 20 mA DC signal and is compatible with a wide range of liquids. It can be suspended in a tank below the level being measured and has wetted materials made of 316 SS, 316L SS, and fluoroelastomer seals. The transmitter can withstand a pressure limit of 2X FS and is suitable for hazardous locations. It has a thermal effect of ±0.02% FS/°F and a loop resistance of 900 Ω. The PBLT2 provides lightning and surge protection, while the PBLTX does not.
Specifications
| Component | Submersible Level Transmitter |
|---|---|
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
| (Instrument-Sensor) IP Protection | IP68 |
| (Instrument-Sensor) Application | Liquid |
| Manufacturer | Dwyer Instruments |
| (Instrument – Sensor) Supply Voltage | 10 – 28 VDC |
| (Instrument – Sensor) Supply Voltage | 13 – 30 VDC |
| (Instrument-Sensor) Temperature Range | -4 – 176 °F/-20 – 80°C |
| (Instrument-Sensor) Temperature Range | 0 – 200 °F/-18 – 93°C |
| (Instrument-Sensor) Temperature Range | -4 – 149 °F/-20 – 65°C |
Features
Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids
Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier
Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility
Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation
Minimal downtime with standard 72 hour lead time
