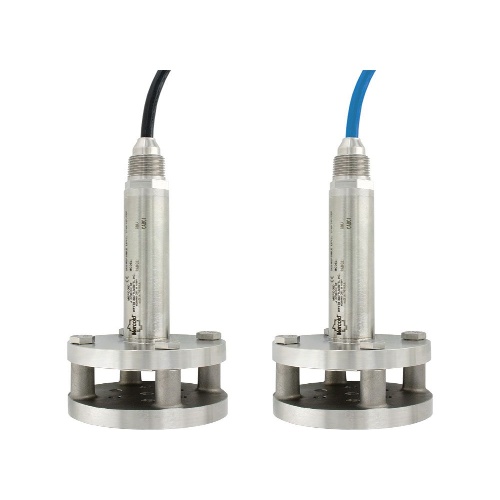

Dwyer PBLT2-5-60 Submersible Level Transmitter
$1,067
Dwyer PBLT2-5-60 is a submersible level transmitter with a temperature range of 0 to 200°F (-18 to 93°C). It offers an accuracy of ±0.25% FS and operates on a power requirement of 13 to 30 VDC. With an IP68 enclosure rating and a response time of 50 msec, this transmitter is designed for use in hazardous locations.…
Dwyer PBLT2-5-60 is a submersible level transmitter with a temperature range of 0 to 200°F (-18 to 93°C). It offers an accuracy of ±0.25% FS and operates on a power requirement of 13 to 30 VDC. With an IP68 enclosure rating and a response time of 50 msec, this transmitter is designed for use in hazardous locations. The output signal is 4 to 20 mA DC, and it is suitable for measuring compatible liquids. The wetted materials include 316 SS and 316L SS for the body, with polyether polyurethane or ETFE for the cable and fluoroelastomer seals. It has a pressure limit of 2X FS and a thermal effect of ±0.02% FS/°F. The electrical connections are wire pigtail, and the loop resistance is 900 Ω.
Specifications
| Component | Submersible Level Transmitter |
|---|---|
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
| (Instrument-Sensor) IP Protection | IP68 |
| (Instrument-Sensor) Application | Liquid |
| Manufacturer | Dwyer Instruments |
| (Instrument – Sensor) Supply Voltage | 10 – 28 VDC |
| (Instrument – Sensor) Supply Voltage | 13 – 30 VDC |
| (Instrument-Sensor) Temperature Range | -4 – 176 °F/-20 – 80°C |
| (Instrument-Sensor) Temperature Range | 0 – 200 °F/-18 – 93°C |
| (Instrument-Sensor) Temperature Range | -4 – 149 °F/-20 – 65°C |
Features
Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids
Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier
Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility
Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation
Minimal downtime with standard 72 hour lead time
