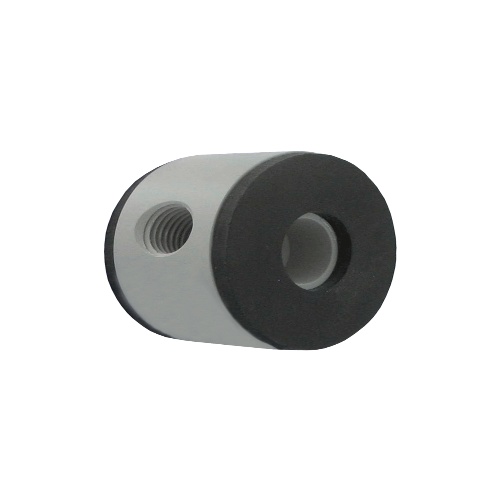

Dwyer PE-Q-1 Orifice Plate Flowmeter
$2,107$2,528 (-17%)
Dwyer PE-Q-1 Orifice Plate Flowmeter is a reliable and accurate solution for measuring flow in clean air and compatible gases. With a temperature range of -40 to 200°F, it can handle a wide range of applications. The monolithic construction of this flowmeter ensures durability and resistance to pressure up to 150 psi.…
Dwyer PE-Q-1 Orifice Plate Flowmeter is a reliable and accurate solution for measuring flow in clean air and compatible gases. With a temperature range of -40 to 200°F, it can handle a wide range of applications. The monolithic construction of this flowmeter ensures durability and resistance to pressure up to 150 psi. It features a 1/4" female NPT process connection and is available in line sizes ranging from 1/2" to 24". The accuracy of ±0.6% full scale flow, with an even higher accuracy of ±0.7% for Beta greater than .6, ensures precise measurements. Installation is quick and easy with the standard flange 125#/150# rating. The head loss is calculated using the Beta ratio, allowing for efficient flow measurement. Compliance with pipe requirements, including 10 diameters upstream and 5 diameters downstream, ensures optimal performance.
Specifications
| (Instrument-Sensor) Application | Liquid |
|---|---|
| (Instrument-Sensor) Application | Gas |
| Component | Flow Meter |
| (Instrument-Sensor) Application | Air |
| (Instrument-Sensor) Type | Orifice Plate |
| (Instrument-Sensor) Measurement Accuracy | 0.60% |
| (Instrument-Sensor) Temperature Range | PE: 140°F/60°C |
| (Instrument-Sensor) Temperature Range | TE: -40 – 200°F/-40 – 93.3°C |
| Manufacturer | Dwyer Instruments |
Features
Mounted with standard flanges with no need of specialty flanges
Reduced installation costs with simple installation by slipping the unit between standard flanges
Easy access with corner type metering taps
Long operation life with corrosion free material
Proven through a wide range of applications for energy efficiency
PTFE construction yields excellent chemical and weather resistance
TE models are flame retardant without factory gaskets
Low friction leading to minimum wear and long operation life
