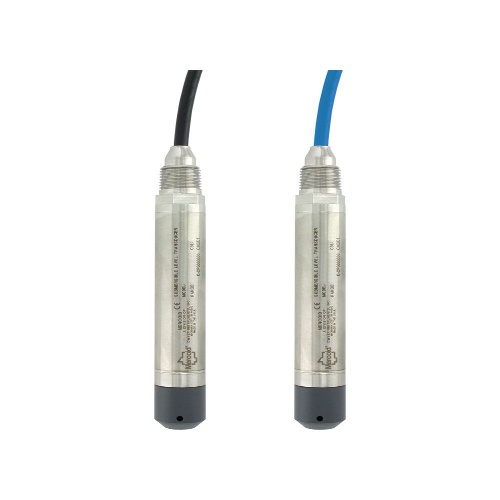

Dwyer SBLT2-170M-200M Submersible Level Transmitter
$1,927$2,312 (-17%)
Dwyer SBLT2-170M-200M is a submersible level transmitter that accurately measures liquid levels. It operates within a temperature range of -4 to 200°F and has an accuracy of ±0.25% FS. The transmitter requires a power input of 10 to 30 VDC and has a quick response time of 50 ms. It has a 4 to 20 mA DC output signal…
Dwyer SBLT2-170M-200M is a submersible level transmitter that accurately measures liquid levels. It operates within a temperature range of -4 to 200°F and has an accuracy of ±0.25% FS. The transmitter requires a power input of 10 to 30 VDC and has a quick response time of 50 ms. It has a 4 to 20 mA DC output signal and is compatible with a variety of liquids. The transmitter is mounted below the level being measured and is made with durable materials such as 316 SS and PVC. It can withstand pressure up to 2X FS and has a thermal effect of ±0.02% full scale/°F.
Specifications
| Component | Submersible Level Transmitter |
|---|---|
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
| (Instrument-Sensor) Application | Liquid |
| Manufacturer | Dwyer Instruments |
| (Instrument – Sensor) Supply Voltage | 10 – 28 VDC |
| (Instrument – Sensor) Supply Voltage | 10 – 30 VDC |
| (Instrument-Sensor) Temperature Range | -4 – 176 °F/-20 – 80°C |
| (Instrument-Sensor) Temperature Range | 0 – 200 °F/-18 – 93°C |
| (Instrument-Sensor) Temperature Range | -4 – 149 °F/-20 – 65°C |
| (Instrument-Sensor) Temperature Range | 0 – 150 °F/-18 – 66°C |
Features
Slim design for tight applications with bullet nose, which protects the diaphragm from damage
Incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on SBLT2 models
Maintenance free filter eliminates particulate or water droplets from entering and damaging the transducer
UL approved intrinsically safe on SBLTX models for use in hazardous locations when used with proper barrier
Excellent chemical compatibility for wide application use
NPT connection allows the unit to be rigidly installed in a pipe/conduit, or the addition of a A-625 hanging loop for attaching a chain for pulling out of the installation
Standard 72 hour lead time ensures minimal downtime
