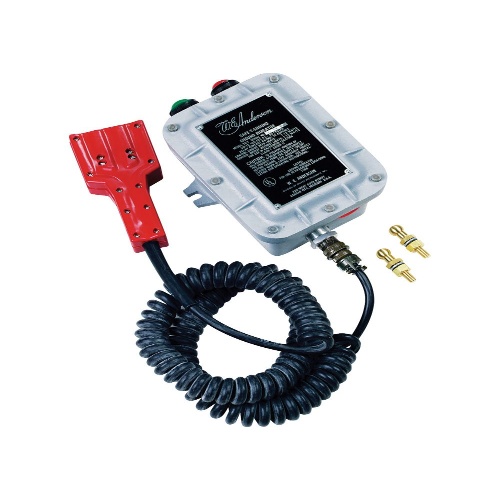

Dwyer TR-7 Safe-T-Ground
$1,444$1,733 (-17%)
Dwyer TR-7 Safe-T-Ground is an explosion-proof enclosure designed for hazardous locations. It has a temperature range of -13 to 104°F and a power requirement of 105-125 VAC. It features a 356-T6 cast aluminum alloy housing and a DPDT, 10 amp, 125 VAC electrical rating. The enclosure has 3/4″ NPT conduit connection and…
Dwyer TR-7 Safe-T-Ground is an explosion-proof enclosure designed for hazardous locations. It has a temperature range of -13 to 104°F and a power requirement of 105-125 VAC. It features a 356-T6 cast aluminum alloy housing and a DPDT, 10 amp, 125 VAC electrical rating. The enclosure has 3/4" NPT conduit connection and dimensions of 6-5/8" W x 10-3/8" H x 5-5/8" D. Wiring is done through the terminal strip, and it comes with 2 grounding studs. The contactor is made of molded polyethylene with berylium copper contact clips and includes a 16-2 type SO coiled cable that retracts to 3' and extends to 16'.
Specifications
| Component | Ground Control |
|---|---|
| (Instrument-Sensor) Temperature Range | -13 – 104°F/-25 – 40°C |
| (Instrument-Sensor) Supply Voltage | 105-125 VAC |
| (Instrument-Sensor) Supply Voltage | 220-240 VAC |
| Manufacturer | Dwyer Instruments |
Features
Audible alarm and LED status indicators
Explosion-proof housing
