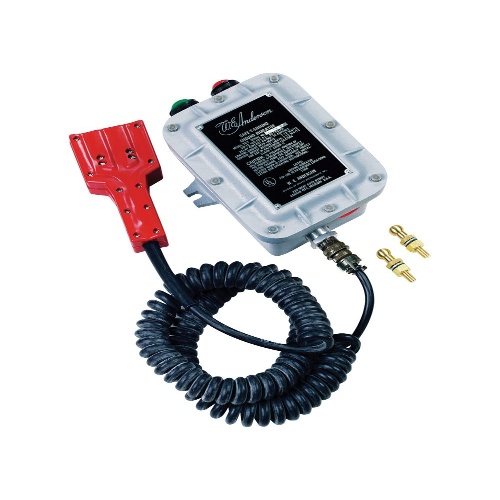

Dwyer TR-7-A Safe-T-Ground
$1,456$1,747 (-17%)
Dwyer TR-7-A Safe-T-Ground is a temperature sensor designed for hazardous locations. It operates in temperatures ranging from -13 to 104°F (-25 to 40°C) and requires a power supply of 105-125 VAC. The housing is made of 356-T6 cast aluminum alloy (copper free) for explosion-proof protection. It has a DPDT electrical…
Dwyer TR-7-A Safe-T-Ground is a temperature sensor designed for hazardous locations. It operates in temperatures ranging from -13 to 104°F (-25 to 40°C) and requires a power supply of 105-125 VAC. The housing is made of 356-T6 cast aluminum alloy (copper free) for explosion-proof protection. It has a DPDT electrical rating of 10 amps, 125 VAC, 60 Hz and features a 3/4" NPT conduit connection. The dimensions of the unit are 6-5/8" W x 10-3/8" H x 5-5/8" D, and it comes with 7/16" mounting lugs for installation. The wiring is done through a terminal strip. The included contactor is made of molded polyethylene with berylium copper contact clips and comes with a 16-2 type SO coiled cable that retracts to 3' and extends to 16'.
Specifications
| Component | Ground Control |
|---|---|
| (Instrument-Sensor) Temperature Range | -13 – 104°F/-25 – 40°C |
| (Instrument-Sensor) Supply Voltage | 105-125 VAC |
| (Instrument-Sensor) Supply Voltage | 220-240 VAC |
| Manufacturer | Dwyer Instruments |
Features
Audible alarm and LED status indicators
Explosion-proof housing
