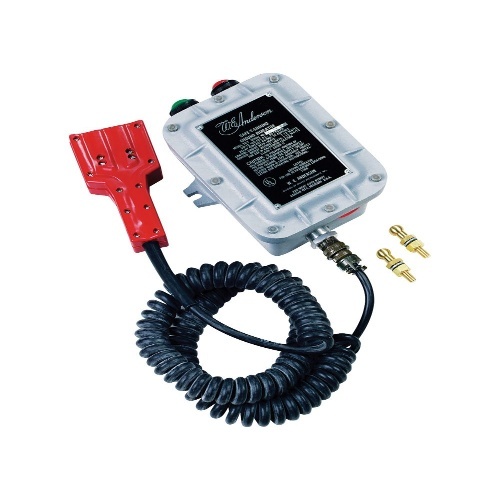

Dwyer TR-7-ABL Safe-T-Ground
$2,802$3,362 (-17%)
Dwyer TR-7-ABL is an explosion-proof Safe-T-Ground component, suitable for hazardous locations. It has a temperature range of -13 to 104°F and electrical rating of DPDT, 10 amps, 125 VAC, 60 Hz. The 356-T6 cast aluminum alloy housing is copper-free and comes with 3/4″ NPT conduit connection. It includes a grounding…
Dwyer TR-7-ABL is an explosion-proof Safe-T-Ground component, suitable for hazardous locations. It has a temperature range of -13 to 104°F and electrical rating of DPDT, 10 amps, 125 VAC, 60 Hz. The 356-T6 cast aluminum alloy housing is copper-free and comes with 3/4" NPT conduit connection. It includes a grounding clamp with berylium copper contact clips and a 16-2 type SO coiled cable that extends up to 16 feet.
Specifications
| Component | Ground Control |
|---|---|
| (Instrument-Sensor) Temperature Range | -13 – 104°F/-25 – 40°C |
| (Instrument-Sensor) Supply Voltage | 105-125 VAC |
| (Instrument-Sensor) Supply Voltage | 220-240 VAC |
| Manufacturer | Dwyer Instruments |
Features
Audible alarm and LED status indicators
Explosion-proof housing
