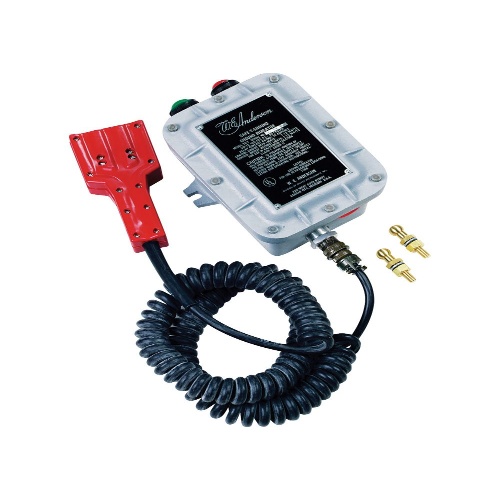

Dwyer TR-7-AX Safe-T-Ground
$1,914
Dwyer TR-7-AX is a Safe-T-Ground component designed for hazardous locations. It operates within a temperature range of -13 to 104°F and requires a power supply of 105-125 VAC. The enclosure is made of 356-T6 cast aluminum alloy, ensuring explosion-proof protection. It has a DPDT electrical rating of 10 amps at 125 VAC…
Dwyer TR-7-AX is a Safe-T-Ground component designed for hazardous locations. It operates within a temperature range of -13 to 104°F and requires a power supply of 105-125 VAC. The enclosure is made of 356-T6 cast aluminum alloy, ensuring explosion-proof protection. It has a DPDT electrical rating of 10 amps at 125 VAC and a 3/4" NPT conduit connection. The dimensions are 6-5/8" W x 10-3/8" H x 5-5/8" D, and it has a terminal strip for wiring. The grounding stud is supplied with the option to order more. The contactor is a molded polyethylene clamp with beryllium copper contact clips, equipped with a 16-2 type SO coiled cable that extends up to 16'.
Specifications
| Component | Ground Control |
|---|---|
| (Instrument-Sensor) Temperature Range | -13 – 104°F/-25 – 40°C |
| (Instrument-Sensor) Supply Voltage | 105-125 VAC |
| (Instrument-Sensor) Supply Voltage | 220-240 VAC |
| Manufacturer | Dwyer Instruments |
Features
Audible alarm and LED status indicators
Explosion-proof housing
