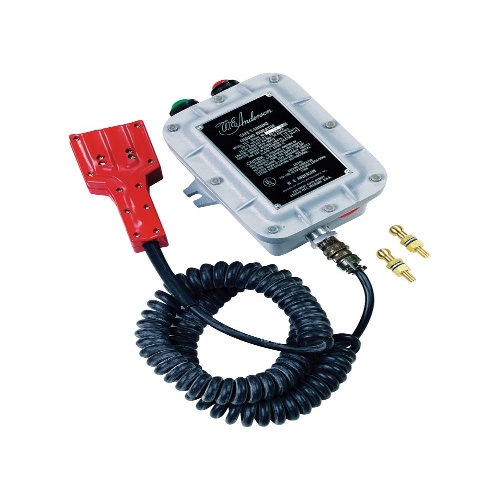

Dwyer TR-7-BL Safe-T-Ground
$1,632$1,959 (-17%)
Dwyer TR-7-BL Safe-T-Ground is an explosion-proof enclosure made from 356-T6 cast aluminum alloy. It features a DPDT, 10 amp, 125 VAC, 60Hz electrical rating and a temperature range of -13 to 104°F (-25 to 40°C). With optional 105-125 VAC or 220-240 VAC power requirements, this product is suitable for hazardous…
Dwyer TR-7-BL Safe-T-Ground is an explosion-proof enclosure made from 356-T6 cast aluminum alloy. It features a DPDT, 10 amp, 125 VAC, 60Hz electrical rating and a temperature range of -13 to 104°F (-25 to 40°C). With optional 105-125 VAC or 220-240 VAC power requirements, this product is suitable for hazardous locations. The housing has 3/4" NPT conduit connections and measures 6-5/8" W x 10-3/8" H x 5-5/8" D. It comes with a grounding clamp and 16-2 type SO coiled cable that extends up to 16'.
Specifications
| Component | Ground Control |
|---|---|
| (Instrument-Sensor) Temperature Range | -13 – 104°F/-25 – 40°C |
| (Instrument-Sensor) Supply Voltage | 105-125 VAC |
| (Instrument-Sensor) Supply Voltage | 220-240 VAC |
| Manufacturer | Dwyer Instruments |
Features
Audible alarm and LED status indicators
Explosion-proof housing
