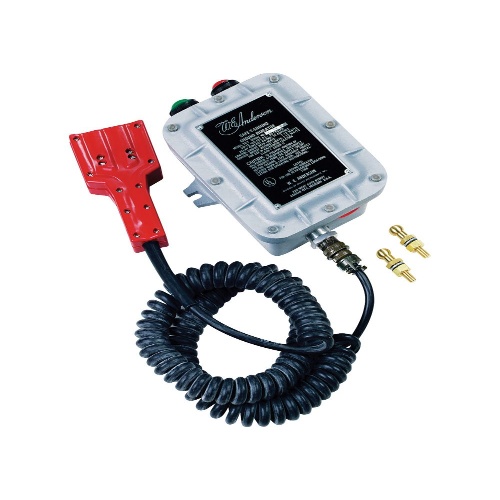

Dwyer TR-7-U Safe-T-Ground
$1,316$1,579 (-17%)
Dwyer TR-7-U Safe-T-Ground is an explosion-proof device designed for hazardous locations. It has a temperature range of -13 to 104°F (-25 to 40°C) and operates on 105-125 VAC. The housing is made of durable cast aluminum alloy, and the electrical rating is DPDT, 10 amps, 125 VAC, 60 Hz. It features a 3/4″ NPT conduit…
Dwyer TR-7-U Safe-T-Ground is an explosion-proof device designed for hazardous locations. It has a temperature range of -13 to 104°F (-25 to 40°C) and operates on 105-125 VAC. The housing is made of durable cast aluminum alloy, and the electrical rating is DPDT, 10 amps, 125 VAC, 60 Hz. It features a 3/4" NPT conduit connection and has dimensions of 6-5/8" W x 10-3/8" H x 5-5/8" D. The installation is facilitated by 7/16" mounting lugs, and the wiring is done via a terminal strip. The device comes with grounding studs and a contactor with a 16-2 type SO coiled cable.
Specifications
| Component | Ground Control |
|---|---|
| (Instrument-Sensor) Temperature Range | -13 – 104°F/-25 – 40°C |
| (Instrument-Sensor) Supply Voltage | 105-125 VAC |
| (Instrument-Sensor) Supply Voltage | 220-240 VAC |
| Manufacturer | Dwyer Instruments |
Features
Audible alarm and LED status indicators
Explosion-proof housing
