Dwyer TR-7-X Safe-T-Ground
$1,410$1,692 (-17%)

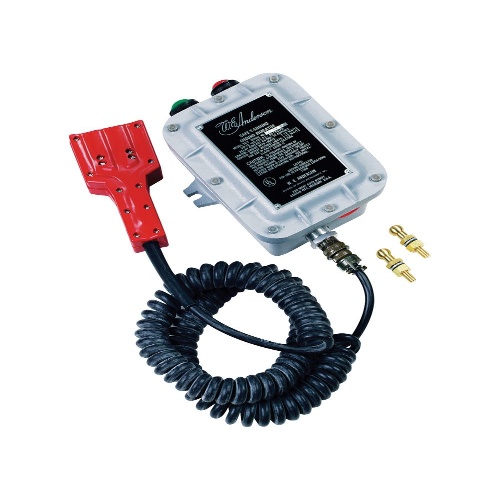

Dwyer TR-7-X Safe-T-Ground is an explosion-proof grounding component designed for hazardous locations. It has a temperature range of -13 to 104°F (-25 to 40°C), and can be powered by 105-125 VAC 60 Hz with lights or 1.75 watts without lights. The housing is made of copper-free cast aluminum alloy, and it has a DPDT,…
Dwyer TR-7-X Safe-T-Ground is an explosion-proof grounding component designed for hazardous locations. It has a temperature range of -13 to 104°F (-25 to 40°C), and can be powered by 105-125 VAC 60 Hz with lights or 1.75 watts without lights. The housing is made of copper-free cast aluminum alloy, and it has a DPDT, 10 amp, 125 VAC, 60 Hz contact rating. The enclosure has a 3/4" NPT conduit connection, and it measures 6-5/8" W x 10-3/8" H x 5-5/8" D. It has 7/16" mounting lugs for installation, a terminal strip for wiring, and comes with two grounding studs. The grounding clamp is made of molded polyethylene with berylium copper contact clips, and it comes with a 16-2 type SO coiled cable that can retract to 3' and extend to 16'.
Specifications
| Component | Ground Control |
|---|---|
| (Instrument-Sensor) Temperature Range | -13 – 104°F/-25 – 40°C |
| (Instrument-Sensor) Supply Voltage | 105-125 VAC |
| (Instrument-Sensor) Supply Voltage | 220-240 VAC |
| Manufacturer | Dwyer Instruments |
Features
Audible alarm and LED status indicators
Explosion-proof housing
