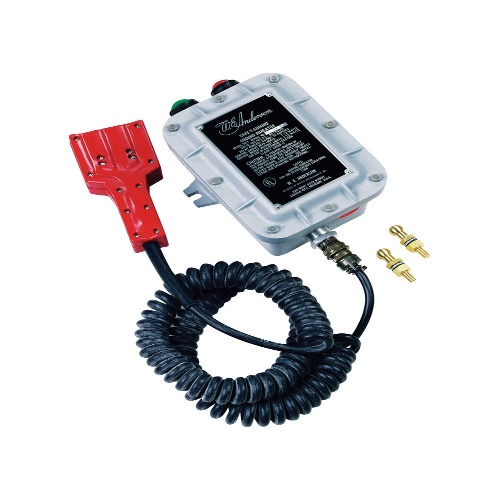

Dwyer TR-7-XB Safe-T-Ground
$1,638
Dwyer TR-7-XB Safe-T-Ground is designed for hazardous locations. It has a temperature range of -13 to 104°F (-25 to 40°C) and can operate on 105-125 VAC, 60 Hz power. The explosion-proof enclosure is made of 356-T6 cast aluminum alloy. It has a DPDT electrical rating of 10 amps, 125 VAC, 60 Hz. It has a 3/4″ NPT…
Dwyer TR-7-XB Safe-T-Ground is designed for hazardous locations. It has a temperature range of -13 to 104°F (-25 to 40°C) and can operate on 105-125 VAC, 60 Hz power. The explosion-proof enclosure is made of 356-T6 cast aluminum alloy. It has a DPDT electrical rating of 10 amps, 125 VAC, 60 Hz. It has a 3/4" NPT conduit connection and dimensions of 6-5/8" W x 10-3/8" H x 5-5/8" D. It requires a 7/16" mounting lugs installation and has a terminal strip wiring. It comes with 2 grounding studs. The contactor (grounding clamp) is made of molded polyethylene with berylium copper contact clips. The included 16-2 type SO coiled cable can retract to 3' and extend to 16'. Optional 220-240 VAC, 50/60 Hz power is also available.
Specifications
| Component | Ground Control |
|---|---|
| (Instrument-Sensor) Temperature Range | -13 – 104°F/-25 – 40°C |
| (Instrument-Sensor) Supply Voltage | 105-125 VAC |
| (Instrument-Sensor) Supply Voltage | 220-240 VAC |
| Manufacturer | Dwyer Instruments |
Features
Audible alarm and LED status indicators
Explosion-proof housing
