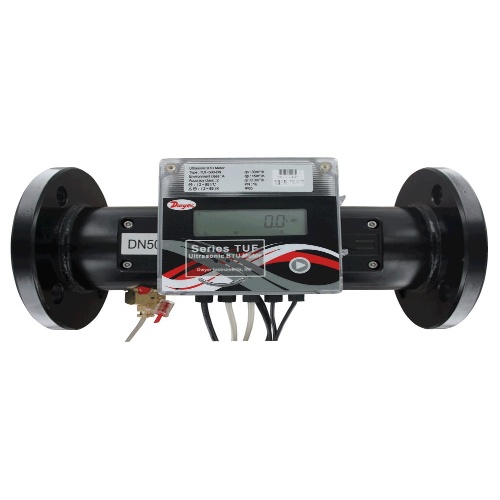

Dwyer TUF-2000-MD Ultrasonic Energy Meter
$6,814$8,177 (-17%)
Dwyer TUF-2000-MD is an Ultrasonic Energy Meter with an accuracy of BTU EN1434/CJ128 Class 2 for temperature and flow measurements. It operates on 24 VDC/VAC power or a backup 3.6 V ER26500 lithium metal battery. Enclosed in an IP65-rated plastic housing, it can withstand humidity up to 93%. The 8-digit LED display…
Dwyer TUF-2000-MD is an Ultrasonic Energy Meter with an accuracy of BTU EN1434/CJ128 Class 2 for temperature and flow measurements. It operates on 24 VDC/VAC power or a backup 3.6 V ER26500 lithium metal battery. Enclosed in an IP65-rated plastic housing, it can withstand humidity up to 93%. The 8-digit LED display allows for easy reading, and it can be mounted horizontally or vertically. With a pressure limit of 232 psi for DN15 to DN40 and 362 psi for >DN50, it is suitable for clean, compatible liquids. Communication options include Modbus RTU or BACnet MSTP.
Specifications
| (Instrument-Sensor) IP Protection | IP65 |
|---|---|
| (Instrument-Sensor) Application | Liquid |
| Component | Flow Meter |
| (Instrument-Sensor) Type | Ultrasonic Energy Meter |
| (Instrument-Sensor) Temperature Range | Ambient: 41 – 131°F/5 – 55°C |
| (Instrument-Sensor) Temperature Range | Process: 36 – 203°F/2 – 95°C |
| (Instrument-Sensor) Measurement Accuracy | 2.0% |
| Manufacturer | Dwyer Instruments |
Features
Lower maintenance costs with local parameter display and no moving parts
Seamless data transfer with serial communication output standard
Eliminate the need for multiple units with a flow and temperature monitor in one
