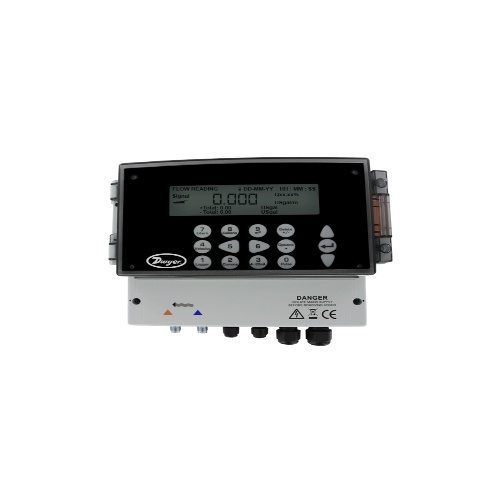

Dwyer UFB-222 Ultrasonic Flowmeter Set

Dwyer UFB-222 is an Ultrasonic Flowmeter Set featuring a temperature range of -4 to 275°F (-20 to 135°C) for the transducer and -4 to 122°F (-20 to 50°C) for the controller. With an accuracy range of ±0.5 to ±2%, this flowmeter is suitable for flow rates above 0.03 ft/s (0.01 m/s) and pipe ODs larger than 3.0 in (75 mm). It is powered by 86 to 264 VAC (50 to 60 Hz) or 24 VAC/VDC (1 A max) and has a response time of <500 ms. The UFB-222 features a range of 0.33 to 33 ft/s (0.1 to 10 m/s) and an enclosure rating of IP65 (when using TNC connector) and IP54 for transducers. It offers analog and pulsed outputs and is suitable for homogeneous liquids with low air content. In addition, it has a 240 x 64 pixel graphic display with multiple language options and a compact size of 5" W x 1.3" H.
