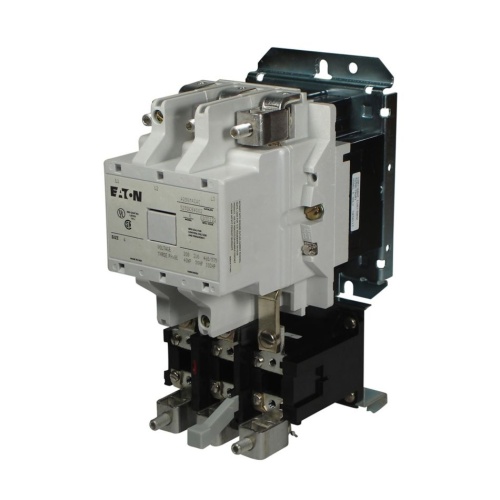

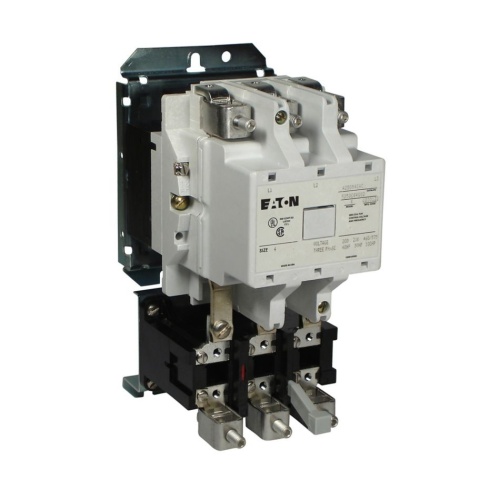

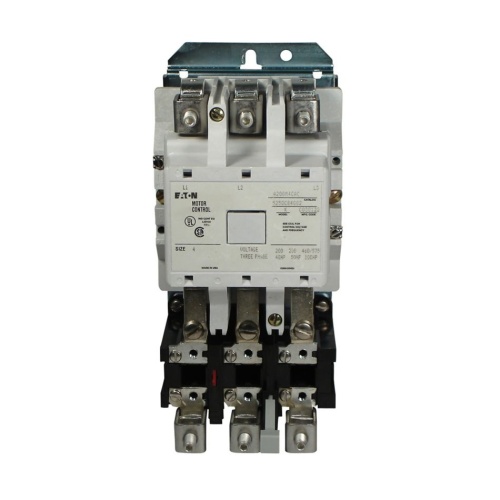

Eaton A200M6CACE Non-Reversing Motor Starter, 600V
$37,949$45,539 (-17%)
Eaton A200M6CACE – Non-Reversing Starter – 120V/60 Hz – 110V/50 Hz or 600V/60 Hz coil voltage – 540A – Three-pole – Size 6 – 150 hp at 208V – 200 hp at 240V – 400 hp at 480 – 600V – A200 series
Eaton A200M6CACE – Non-Reversing Starter – 120V/60 Hz – 110V/50 Hz or 600V/60 Hz coil voltage – 540A – Three-pole – Size 6 – 150 hp at 208V – 200 hp at 240V – 400 hp at 480 – 600V – A200 series
Specifications
| Starter Frequency | 60 Hz |
|---|---|
| Starter NEMA Size | 6 |
| Starter Poles | 3 Pole |
| Starter Coil Voltage | 110 VAC |
| Starter Frequency | 50 Hz |
| Starter Reversing Capability | Non-Reversing |
| Starter Amperage | 540 Amp |
| Manufacturer | Eaton |
| Starter Class | A200 |
| Component | Motor Control Starter |
| Starter HP | 150 HP @ 208 VAC |
| Starter HP | 200 HP @ 240 VAC |
| Starter HP | 400 HP @ 600 VAC |
| Starter Phase | Three Phase |
| Starter Maximum Voltage | 600 VAC |
Features
Straight through wiring to the line and load terminals located up front for ease of installation
Coil design reduces inventory expenses. One size for sizes 00-2 and one size for 3 and 4
