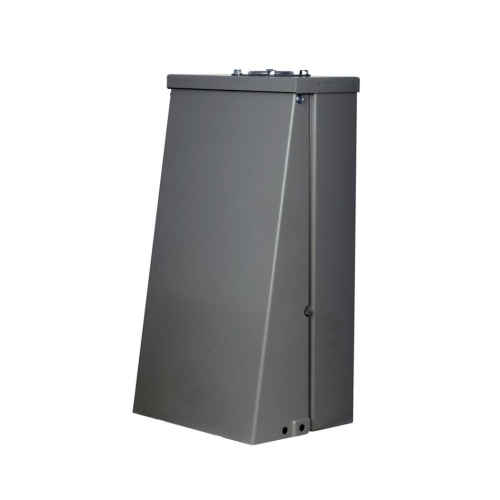

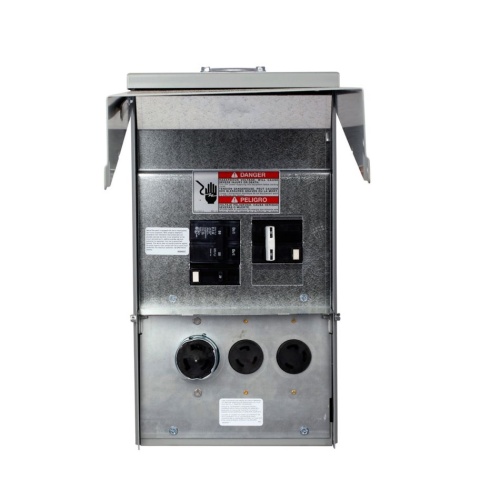

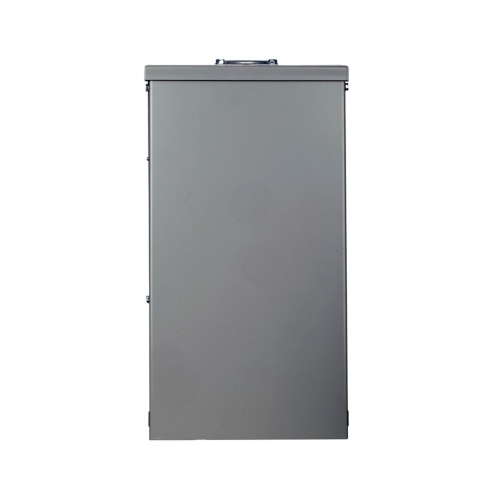

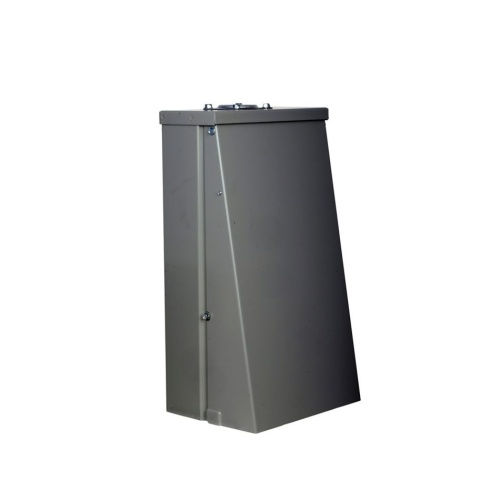

Eaton CHUANANPX Unmetered Power Outlet Panel
$1,720$2,064 (-17%)
CHUANANPX • Pedestal mount:User mounts with an underground pedestal extension or pad-mounting bracket. UNDERGROUND PEDESTAL EXTENSION AND PADMOUNTING BRACKET ARE SOLD SEPARATELY • 100 percent galvanized steel with baked-on polyester powder coating • GFI circuit breakers (single- and two-pole) available through 50 A •…
CHUANANPX • Pedestal mount:User mounts with an underground pedestal extension or pad-mounting bracket. UNDERGROUND PEDESTAL EXTENSION AND PADMOUNTING BRACKET ARE SOLD SEPARATELY • 100 percent galvanized steel with baked-on polyester powder coating • GFI circuit breakers (single- and two-pole) available through 50 A • One-piece case back for metered and unmetered panels • Removable upper deadfront cover for easy incoming wire connections to breaker terminals • Door swings up when opening and allows cords to remain connected when closed • Unique steel barrier prevents unauthorized operation of breakers when door is closed and padlocked • Lower deadfront cover can be removed for easy routing of incoming wires or receptacle changeouts • Padlock provisions to prevent unauthorized entry • Loop-feed lug assembly with 350 kcmil lugs included as standard • Pad-mounted bracket option also available • Pedestal extension available for underground services • Utility grade metering available for construction site or RV park applications • NEMA 3R construction for rainproof installation
Specifications
| Manufacturer | Eaton |
|---|---|
| Metering Status | Unmetered |
| Breaker Max Voltage | 125 VAC |
| Breaker Type 1 | Non-GFI |
| Breaker Type 2 | Non-GFI |
| Mounting | Pedestal |
| Breaker Max Voltage | 250 VAC |
| Breaker Amp Rating 1 | 50 Amp |
| Circuits | 6 |
| Breaker Amp Rating 2 | 50 Amp |
| Receptable Left | NEMA L14-50R |
| Receptable Center | NEMA L14-50R |
| Component | Power Pedestal |
Features
Power outlet panels (POP) provide safe, reliable temporary power for construction sites.
Durable, long-lasting units are available as metered or unmetered and can be mounted at the surface, on a pedestal, or in a back-to-back configuration.
