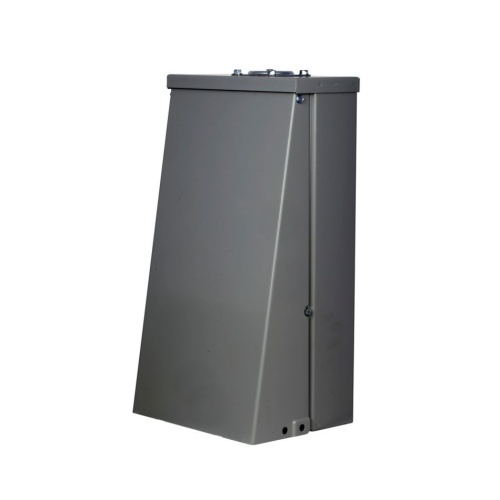

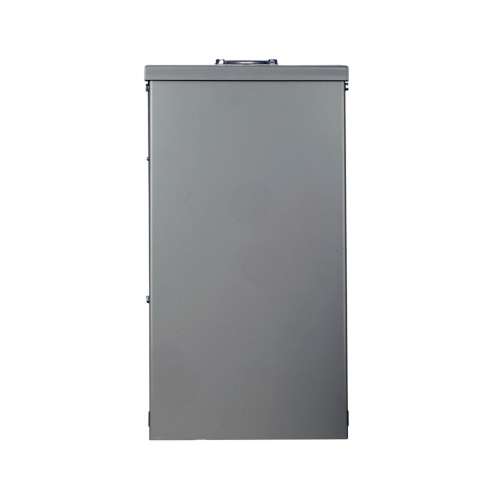

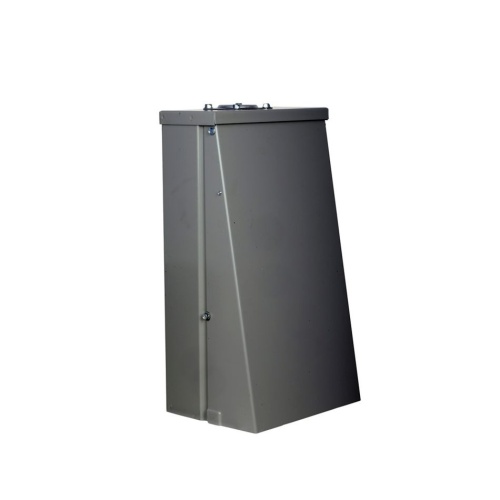

Eaton CHUANJGEGSX Unmetered Power Outlet Panel
$1,822$2,187 (-17%)
CHUANJGEGSX • Surface mount: User mounts unit to a post • 100 percent galvanized steel with baked-on polyester powder coating • NEMA 3R construction for rainproof installation • Utility grade metering available for construction site or RV park applications • Door swings up when opening and allows cords to remain…

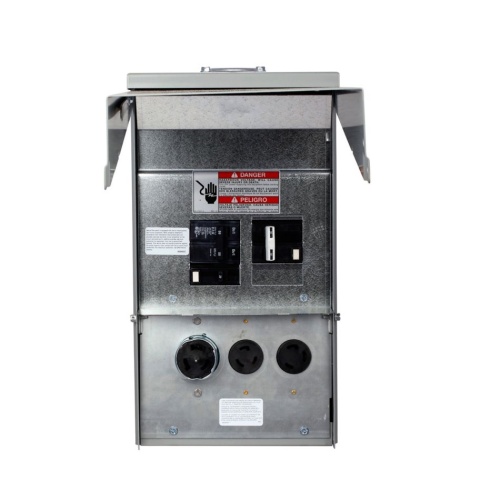

CHUANJGEGSX • Surface mount: User mounts unit to a post • 100 percent galvanized steel with baked-on polyester powder coating • NEMA 3R construction for rainproof installation • Utility grade metering available for construction site or RV park applications • Door swings up when opening and allows cords to remain connected when closed • Removable upper deadfront cover for easy incoming wire connections to breaker terminals • Lower deadfront cover can be removed for easy routing of incoming wires or receptacle changeouts • Three-point mounting • One-piece case back for metered and unmetered panels • Lighted option for site location and nighttime panel operations • GFI circuit breakers available through 50 A • Unique steel barrier prevents unauthorized operation of breakers when door is closed and padlocked • Units are factory wired and assembled
Specifications
| Manufacturer | Eaton |
|---|---|
| Mounting | Surface |
| Metering Status | Unmetered |
| Breaker Max Voltage | 125 VAC |
| Breaker Amp Rating 2 | 20 Amp |
| Breaker Type 1 | Non-GFI |
| Breaker Type 2 | GFI |
| Breaker Type 3 | GFI |
| Breaker Max Voltage | 250 VAC |
| Breaker Amp Rating 1 | 50 Amp |
| Breaker Amp Rating 3 | 30 Amp |
| Circuits | 6 |
| Receptable Center | NEMA L5-20R |
| Receptable Left | NEMA L14-50R |
| Receptable Right | NEMA L6-30R |
| Component | Power Pedestal |
Features
Power outlet panels (POP) provide safe, reliable temporary power for construction sites.
Durable, long-lasting units are available as metered or unmetered and can be mounted at the surface, on a pedestal, or in a back-to-back configuration.
