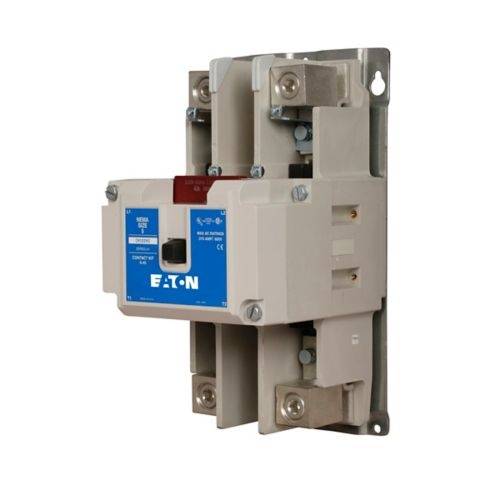

Eaton CN15SN3A 270A NEMA Size 5 Non-Reversing Contactor, 110V Coil
$12,063$14,475 (-17%)
Eaton CN15SN3A NEMA non-reversing contactor, Size 5, 270 A main rating with 120 VAC (60 Hz) or 110 VAC (50 Hz) coil options. Genuine Eaton industrial contactor — fast delivery from Batam across Indonesia and Southeast Asia.
The Eaton CN15SN3A is a heavy-duty NEMA non-reversing contactor (Size 5) rated for 270 A continuous duty. This full-voltage, three-pole starter contactor accepts 120 VAC (60 Hz) or 110 VAC (50 Hz) coil options and is built for motor control and industrial switching of large motors and loads. It is commonly used in NEMA starter assemblies, motor control centers and OEM control panels where reliable heavy-duty switching is required.
Key Features
- NEMA Size 5, three-pole full-voltage non-reversing contactor for heavy-duty motor control.
- Main current rating 270 A suitable for large motor starters and industrial loads.
- Coil options: 120 VAC (60 Hz) and 110 VAC (50 Hz) for flexible supply compatibility.
- Open enclosure design for installation inside starter panels and motor control centers.
- High horsepower switching capability: 75 HP @ 208 VAC; 100 HP @ 240 VAC; 200 HP @ 600 VAC.
- Robust Eaton construction engineered for high inrush currents and long contact life.
Technical Specifications
| Manufacturer | Eaton |
|---|---|
| Commercial Reference | CN15SN3A |
| Component | NEMA Contactor |
| Sub Component | NEMA Non-Reversing Contactor |
| Starter Type | Full-voltage non-reversing |
| Starter NEMA Size | 5 |
| Starter Poles | 3-pole |
| Starter Amperage | 270 Amp |
| Coil Voltage / Frequency | 120 VAC (60 Hz) / 110 VAC (50 Hz) |
| Starter Enclosure Type | Open |
| Starter HP Ratings | 75 HP @ 208 VAC; 100 HP @ 240 VAC; 200 HP @ 600 VAC |
| Starter Reversing Capability | Non-Reversing |
Applications
Typical uses include full-voltage motor starters for pumps, compressors, conveyors, fans and crushers; HVAC chiller and cooling system motors; and industrial machinery or process equipment requiring reliable NEMA contactors for large motor control.
We supply genuine Eaton CN15SN3A contactors through authorized channels from our Batam base, with fast delivery across Indonesia and Southeast Asia. Competitive lead times and available stock support your industrial projects — contact us to request a formal quotation or check availability for your application.
