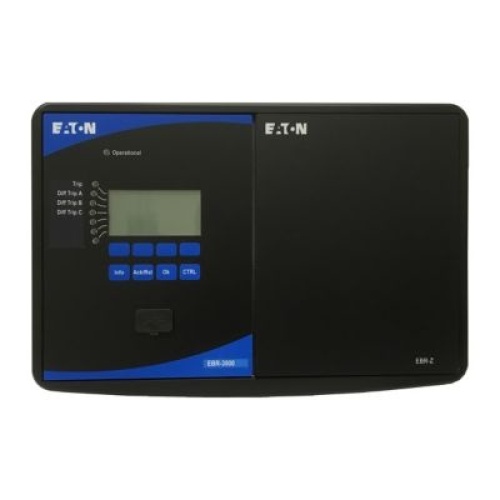

Eaton EBR-3Z-2B0GA1-B Bus Differential Protective Relay, 10A
$6,981$8,377 (-17%)
Eaton EBR-3Z-2B0GA1-B bus differential protection relay (EBR-3000 series) with wide supply 40–250 Vac / 19–300 Vdc, Modbus RTU & DNP3 communications. Genuine Eaton unit — fast delivery from Batam across Indonesia and Southeast Asia.
The Eaton EBR-3Z-2B0GA1-B (EBR-3000 series) is a bus differential protection relay engineered for high-impedance differential schemes. It accepts wide control supplies (40–250 Vac or 19–300 Vdc), supports 50/60 Hz systems and provides secure three-phase differential and restricted earth-fault protection for switchgear, transformers, generators and motor feeders. Built for protection relay and busbar differential applications with serial communications for remote SCADA integration.
Key Features
- High-impedance bus differential protection for secure fault discrimination in switchgear and busbars.
- Three-phase differential and restricted earth-fault (REF) protection suitable for transformers, generators and motors.
- Integrated communications: Modbus RTU and DNP3.0 RTU over RS-485 for SCADA and relay-to-relay links.
- Wide AC/DC supply range (40–250 Vac / 19–300 Vdc) and 50/60 Hz compatibility for flexible system integration.
- Compact projection panel mounting with D-SUB / RS-485 interface and industrial operating range (-20 to 60°C).
- Low power consumption (approx. 10 W / 17 VA) for economical continuous operation.
Technical Specifications
| Manufacturer | Eaton |
|---|---|
| Commercial Reference | EBR-3Z-2B0GA1-B (EBR-3000) |
| Component | Bus Differential Relay / Protection Relay |
| Supply Voltage | 40–250 Vac / 19–300 Vdc |
| Frequency | 50/60 Hz |
| Communications | Modbus RTU, DNP3.0 RTU over RS-485 |
| Interface | RS-485 (D-SUB) |
| Power Consumption | Approx. 10 W / 17 VA |
| Current Input | 5 A AC/DC |
| Mounting | Projection panel mount |
| Operating Temperature | -20 to 60 °C |
Applications
Designed for high-reliability protection in medium- and large-scale electrical systems: busbar differential protection in switchgear, transformer and generator differential protection, motor feeder protection, and restricted earth-fault detection in grounded-wye windings.
We supply genuine Eaton protection relays through authorized channels from our Batam base with fast delivery across Indonesia and Southeast Asia. Competitive pricing and reliable logistics — contact us to request a formal quotation or technical support for system integration.
