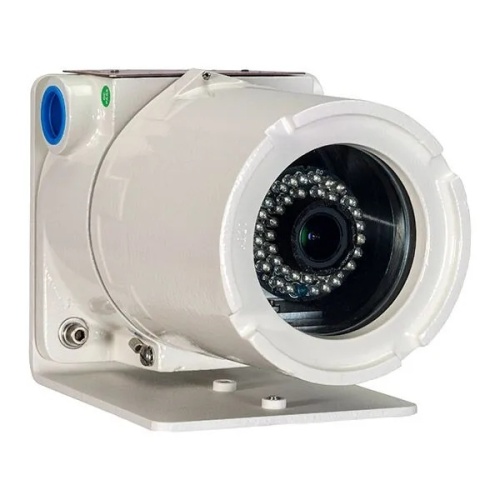

IVC AMZ-3041-2-12 Explosion Proof 1080p Camera, 12 VDC – NEMA 4X, IP66
$2,295
IVC AMZ-3041-2-12 – This wall mount camera features a 1/3” DPS CMOS imager, DC auto iris, and F1.4 aperture for crisp images. With 525 TV lines (NTSC) or 625 TV lines (PAL) and low light sensitivity of 0.3 Lux (color) / 0.06 Lux (b/w), it offers high-quality surveillance. NEMA Type 4x/IP66 rated for outdoor use,…
IVC AMZ-3041-2-12 – This wall mount camera features a 1/3” DPS CMOS imager, DC auto iris, and F1.4 aperture for crisp images. With 525 TV lines (NTSC) or 625 TV lines (PAL) and low light sensitivity of 0.3 Lux (color) / 0.06 Lux (b/w), it offers high-quality surveillance. NEMA Type 4x/IP66 rated for outdoor use, operational in -40° to 60° C temperatures. UL 61010-1 compliant, with 50 dB S/N ratio and VBS 1.0Vp-p/75 Ohms video output. Available in aluminum (8.1 lbs) or stainless steel (10.2 lbs) enclosures. Voltage requirements vary.
Specifications
| Component | Fixed Analog Camera |
|---|---|
| Voltage Required | 12 VDC |
| Imager | 1/3” DPS CMOS |
| Mount | Wall Mount Standard |
| Power Consumption | 0.7A @ 12 VDC |
| Power Consumption | 0.4A @ 24 VDC |
| Protection Class | NEMA 4X |
| Protection Class | IP66 |
| Manufacturer | IVC |
| Minimum Illumination | 0.3 Lux (Color) |
| Minimum Illumination | 0.06 Lux (B/W) |
Features
Indoor/outdoor fixed camera
-40° to 60° range of operation
12 VDC, 24 VDC, 24 VAC versions
Wide dynamic range
Certified for use in hazardous areas
