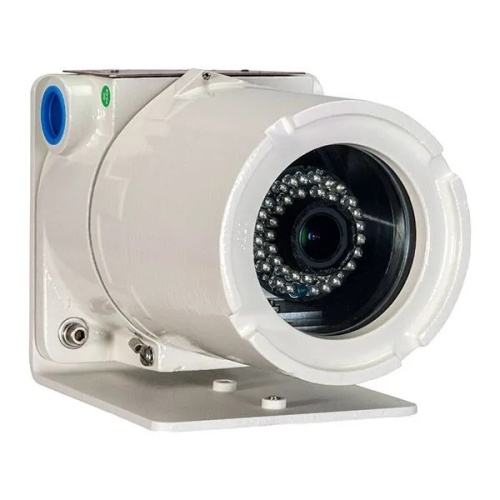

IVC AMZ-3041-2-24A Explosion Proof 1080p Camera, 24 VAC – NEMA 4X, IP66
$2,295
IVC AMZ-3041-2-24A – The Auto Iris DC wall-mount camera features a 1/3” DPS CMOS imager, F1.4 lens with 525 TV lines (NTSC) and 625 TV lines (PAL) resolution. It operates in temperatures of -40° to 60° C, with NEMA Type 4x/IP66 protection. UL1203:2013 Ed.5+R:30Jan2020 compliant, S/N Ratio ≥50dB (p-p/rms). Voltage…
IVC AMZ-3041-2-24A – The Auto Iris DC wall-mount camera features a 1/3” DPS CMOS imager, F1.4 lens with 525 TV lines (NTSC) and 625 TV lines (PAL) resolution. It operates in temperatures of -40° to 60° C, with NEMA Type 4x/IP66 protection. UL1203:2013 Ed.5+R:30Jan2020 compliant, S/N Ratio ≥50dB (p-p/rms). Voltage dependent on ordering information.
Specifications
| Component | Fixed Analog Camera |
|---|---|
| Imager | 1/3” DPS CMOS |
| Mount | Wall Mount Standard |
| Power Consumption | 0.7A @ 12 VDC |
| Power Consumption | 0.4A @ 24 VDC |
| Protection Class | NEMA 4X |
| Protection Class | IP66 |
| Manufacturer | IVC |
| Voltage Required | 24 VAC |
| Minimum Illumination | 0.3 Lux (Color) |
| Minimum Illumination | 0.06 Lux (B/W) |
Features
Indoor/outdoor fixed camera
-40° to 60° range of operation
12 VDC, 24 VDC, 24 VAC versions
Wide dynamic range
Certified for use in hazardous areas
