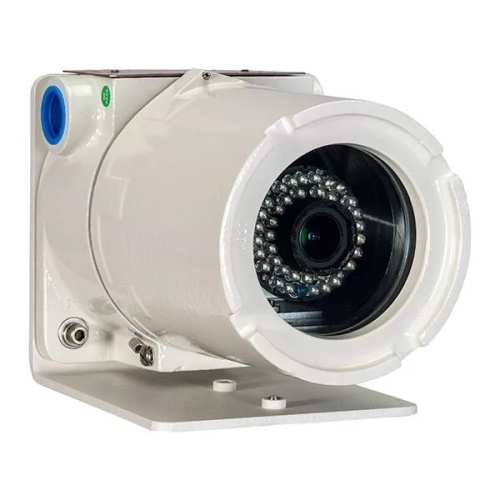

IVC AMZ-3041-2-24D Explosion Proof 1080p Camera, 24 VDC – NEMA 4X, IP66
$2,295
IVC AMZ-3041-2-24D – The Auto Iris CCTV camera features a DC iris with F1.4, 525 TV lines (NTSC) or 625 TV lines (PAL) resolution, and a 1/3″ DPS CMOS imager. It operates in temperatures from -40° to 60°C, with NEMA Type 4x and IP66 protection. UL1203:2013 Ed.5+R:30Jan2020 compliant, it offers a minimum illumination…
IVC AMZ-3041-2-24D – The Auto Iris CCTV camera features a DC iris with F1.4, 525 TV lines (NTSC) or 625 TV lines (PAL) resolution, and a 1/3" DPS CMOS imager. It operates in temperatures from -40° to 60°C, with NEMA Type 4x and IP66 protection. UL1203:2013 Ed.5+R:30Jan2020 compliant, it offers a minimum illumination of 0.3 Lux (color) and 0.06 Lux (b/w), with a S/N Ratio of 50 dB or better. Weighing 8.1 lbs. (Aluminum Enclosure) or 10.2 lbs. (Stainless Steel Enclosure), its power consumption is 0.7A @ 12 VDC or 0.4A @ 24 VDC. White balance is automatic, and it comes with VBS 1.0V p-p/75 Ohms video output. Order as per voltage required. Regulatory approvals conform to UL STD 61010-1 +. Storage temperature ranges from -45° to 65°C. Suitable for wall mounting.
Specifications
| Component | Fixed Analog Camera |
|---|---|
| Imager | 1/3” DPS CMOS |
| Mount | Wall Mount Standard |
| Power Consumption | 0.7A @ 12 VDC |
| Power Consumption | 0.4A @ 24 VDC |
| Protection Class | NEMA 4X |
| Protection Class | IP66 |
| Manufacturer | IVC |
| Voltage Required | 24 VDC |
| Minimum Illumination | 0.3 Lux (Color) |
| Minimum Illumination | 0.06 Lux (B/W) |
Features
Indoor/outdoor fixed camera
-40° to 60° range of operation
12 VDC, 24 VDC, 24 VAC versions
Wide dynamic range
Certified for use in hazardous areas
