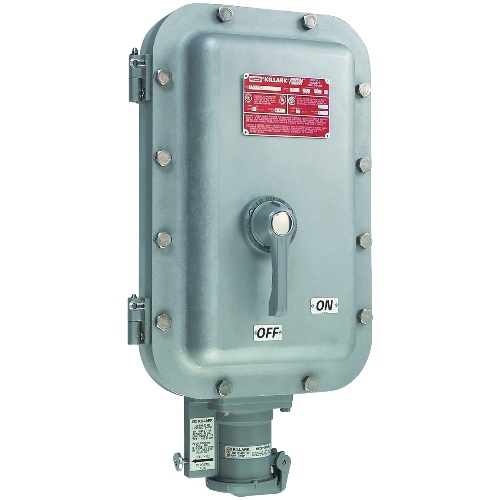

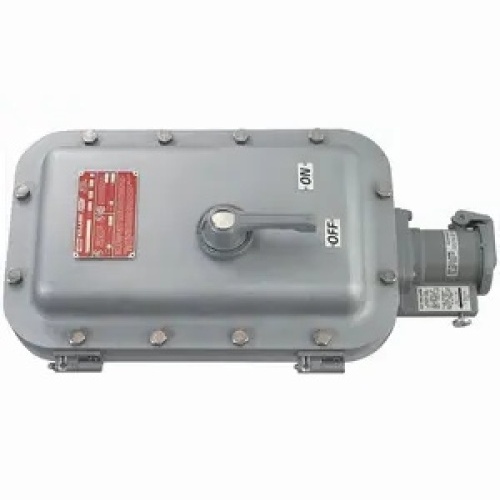

Killark VBQ1023SH90 – Hazardous Location Receptacle – 3 Wire, 100 Amp

Killark VBQ1023SH90 – Plug Interlock Mechanism for Dead-Front construction. Switch cannot be turned “ON” without fully inserted plug. Plug cannot be removed with switch in “ON”position. Ground Fault Options Available. Spacious wiring room that meets NEC wire bending requirements. Adjustable mounting lugs. Quick Release Cover Bolts with Triple Leads for faster removal. Electrostatically applied polyester/epoxy finish. Breaker Handle has provisions for locking “ON” or “OFF” with up to three Padlocks Killark VersaMate® VBQ Series of Switched and Interlocked receptacles provides for a receptacle solution in hazardous location areas. NEMA 4X weather-ingress ratings allow for indoor and outdoor use, and copper-free aluminum construction with electrostatically applied polyester/epoxy coating ensure the ultimate in corrosive resistance. Plug Interlock Mechanism for Dead-Front construction, ensuring that the switch cannot be turned on without a fully inserted plug (plug cannot be removed with switch in “ON”position, preventing possibly damaging arcs and sparks). Integral circuit breaker allows for local circuit protection (Square D and Cutler-Hammer options available). – Class I, Division 2, Groups B, C, D – Class I, Zone 2, Groups IIB+H2, IIA – Class II, Divisions 1 & 2, Groups F, G – Class III, Divisions 1 & 2

Specifications

Features
