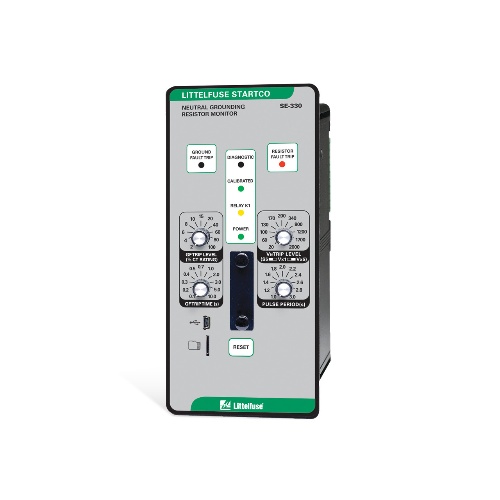

Littelfuse SE-330-08-00 NGR Monitor, Dual SC Fiber, IEC 61850
$4,923$5,907 (-17%)
Littelfuse SE-330-08-00 Neutral Grounding Resistor (NGR) Monitor — universal AC/DC supply (65–265 VAC / 85–275 VDC), IEC 61850-capable protection relay for resistance-grounded systems. Genuine Littelfuse product with fast delivery from Batam across Indonesia & Southeast Asia.
The Littelfuse SE-330-08-00 is a Neutral Grounding Resistor (NGR) monitor designed for protection and continuous supervision of resistance-grounded AC systems. This IEC-capable protection relay supports universal AC/DC supply voltages (65–265 VAC / 85–275 VDC), offers IEC 61850 and USB communications, and provides RF-trip detection for systems up to and above 5 kV. Ideal for substation neutral monitoring, generator neutrals and industrial motor/transformer protection.
Key Features
- Continuous NGR monitoring with shorted-resistor detection
- Selectable contact operating modes: fail-safe or non-fail-safe; latching or autoreset
- Flexible I/O: 2 Form A or 2 Form C programmable outputs
- Communications: USB and IEC 61850 for integration with modern protection systems
- Adjustable pickup (2–100 %) and adjustable trip delay (0.1–10 s) for coordination
- Analog 4–20 mA output and pulsing output (SE-330 models) plus conformal coating for harsh environments
Technical Specifications
| Manufacturer | Littelfuse |
|---|---|
| Commercial Reference | SE-330-08-00 |
| Component | Neutral Grounding Resistor Monitor |
| Supply Voltage | 65–265 VAC; 85–275 VDC |
| Contacts | 2 Form A or 2 Form C (programmable) |
| Communications | USB, IEC 61850 |
| RF Trip Level | 20–2000 V (systems ≤5 kV); 100–10000 V (systems >5 kV) |
| Adjustable Pickup | 2–100 % |
| Time Delay | 0.1–10 s |
| Analog Output | 4–20 mA |
| Additional Features | Conformal coating, pulsing output (SE-330 only), universal CT compatibility |
Applications
Used for neutral grounding supervision and ground-fault detection in power distribution substations, industrial plants with resistance-grounded systems, generator/transformer neutral protection, and as main or backup detection in utilities and heavy industry.
We supply genuine Littelfuse protection relays through authorized channels. Based in Batam, we offer fast delivery across Indonesia and Southeast Asia, competitive pricing, and expert product support. Contact us to request a quotation or technical information for the SE-330-08-00.
