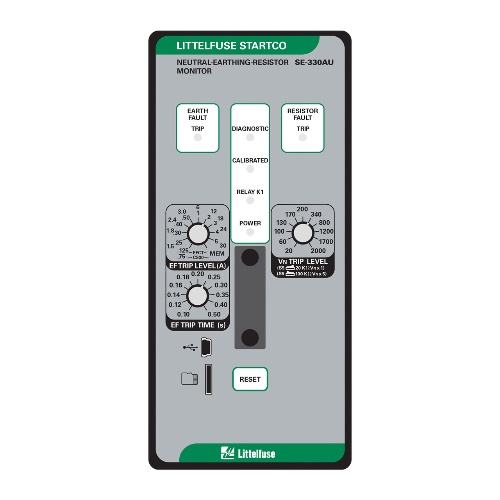

Littelfuse SE-330AU-08-01 NGR Monitor, Dual SC Fiber, IEC 61850, NC

The Littelfuse SE-330AU-08-01 is a Neutral Grounding Resistor Monitor (NGR monitor) designed for continuous supervision of neutral-earthing resistors in resistance-grounded AC systems. With wide supply inputs (65–265 VAC / 85–275 VDC), IEC 61850 and USB communications, and adjustable trip level/time settings, it provides reliable earth-fault detection for low- and medium-voltage transformers, generator neutrals and distribution protection applications that require proven NER integrity verification.

Key Features

• Continuous monitoring of neutral current, neutral-to-earth voltage and neutral-to-earth resistance.
• Detects open or failed neutral-earthing resistor (NER) to prevent loss of earth-fault protection.
• Wide supply voltage support: 65–265 VAC and 85–275 VDC for flexible installation.
• Communication options include IEC 61850 and USB for integration and setup.
• Front-panel switch and remote N.O. contact reset plus fail-safe operation for secure response.
• Standard conformal coating and harmonic filtering plus adjustable trip level and time settings.

Technical Specifications

Applications

Use for NGR monitoring on low- and medium-voltage transformers, generator neutral supervision, distribution substations, industrial power systems and critical plant feeders where earth-fault detection and NER integrity are required.
