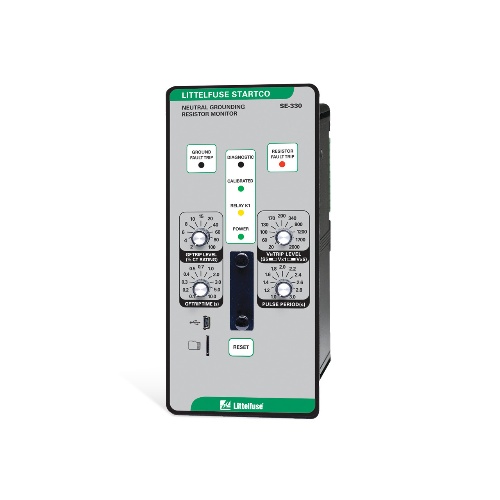

Littelfuse SE-330HV-01-00 NGR Monitor, High Voltage, DeviceNet, NO
$4,971$5,965 (-17%)
Littelfuse SE-330HV-01-00 Neutral Grounding Resistor (NGR) Monitor — supply 65–265 V AC / 85–275 V DC, 4–20 mA analog output and DeviceNet/USB communications. Genuine Littelfuse product from Batam with fast delivery across Indonesia and Southeast Asia.
The Littelfuse SE-330HV-01-00 is a neutral grounding resistor (NGR) monitor designed for resistance-grounded AC systems. This protection relay-style device accepts 65–265 V AC or 85–275 V DC supplies, provides a 4–20 mA analog output and supports USB and DeviceNet communications. SE-330HV is used for continuous NGR monitoring, ground-fault detection and rapid resistor-failure alarm in substations, industrial power distribution and utility applications requiring reliable NGR supervision.
Key Features
- Continuous monitoring of neutral grounding resistor with shorted-NGR detection to quickly flag resistor faults.
- Selectable fail-safe or non-fail-safe operation and selectable contact operating modes for flexible control logic.
- Front-panel switch or remote N.O. contact reset, with programmable output contacts and pulsing output on SE-330 models.
- Universal CT compatibility, adjustable pickup (2–100 %) and adjustable trip delay (0.1–10 s) for precise sensitivity and coordination.
- Analog 4–20 mA output plus USB and DeviceNet communications for integration with SCADA and protection systems.
- Conformal coating and standard harmonic filtering for robust performance in industrial environments.
Technical Specifications
| Manufacturer | Littelfuse |
|---|---|
| Commercial Reference | SE-330HV-01-00 |
| Product Type | Neutral Grounding Resistor Monitor (NGR Monitor) |
| Supply Voltage (AC) | 65–265 V AC |
| Supply Voltage (DC) | 85–275 V DC |
| Analog Output | 4–20 mA |
| Communications | USB, DeviceNet |
| Adjustable Pickup | 2–100 % |
| Adjustable Time Delay | 0.1–10 s |
| Reset Options | Front-panel switch / Remote N.O. contact |
| Special Outputs | Programmable contacts; pulsing output (SE-330 only) |
| RF Trip Levels | 100–10,000 V (up to 35 kV systems); 200–20,000 V (72 kV systems) |
| Protection Features | Continuous NGR monitoring, ground-fault detection, shorted NGR detection |
| Environment | Conformally coated; harmonic filtering |
Applications
Used for NGR supervision and ground-fault protection in distribution substations, industrial power systems, generation plants, mining and wastewater facilities. Ideal where fast detection of resistor failure and integration with SCADA/DeviceNet is required.
We supply genuine Littelfuse SE-330HV-01-00 units through authorized channels from our Batam base. Fast delivery across Indonesia and Southeast Asia, competitive commercial terms and local support available — contact us to request a formal quotation or technical assistance.
