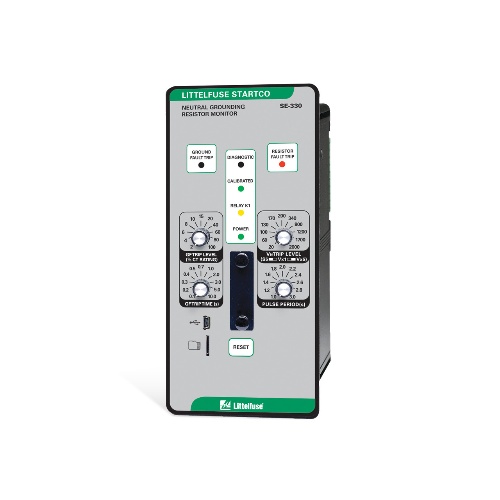

Littelfuse SE-330HV-06-00 NGR Monitor Universal Dual RJ45 IEC 61850
$4,971$5,965 (-17%)
Littelfuse SE-330HV-06-00 neutral grounding resistor (NGR) monitor, 65–265 V AC / 85–275 V DC supply, with IEC 61850 Ethernet and dual RJ45. Genuine Littelfuse unit from Batam — fast delivery across Indonesia & Southeast Asia.
The Littelfuse SE-330HV-06-00 is a neutral grounding resistor (NGR) monitor designed for resistance-grounded AC systems. This NGR monitor (SE-330 series) accepts 65–265 V AC or 85–275 V DC supply and provides continuous ground-fault and shorted-resistor detection. Ideal for power distribution, substations and industrial plants where IEC 61850 communications and reliable ground-fault protection are required.
Key Features
- Continuous NGR monitoring with fast detection of resistor failures to reduce transient overvoltage risk.
- Shorted NGR and ground-fault detection plus selectable pickup sensitivity adjustable in 1% steps (2–100%).
- Adjustable trip/time delay (0.1–10 s) for system coordination and nuisance-filtering.
- Universal CT compatibility, programmable relay outputs and selectable fail-safe or non-fail-safe contact modes.
- Analog 4–20 mA output and pulsing output (SE-330 specific), with front-panel reset or remote N.O. reset contact.
- Built-in harmonics filtering and communication options including USB and dual RJ45 Ethernet with IEC 61850 support.
Technical Specifications
| Manufacturer | Littelfuse |
|---|---|
| Commercial Reference | SE-330HV-06-00 |
| Component | Neutral Grounding Resistor Monitor (NGR Monitor) |
| Supply Voltage | 65–265 V AC / 85–275 V DC |
| Communications | USB; Dual RJ45 Ethernet; IEC 61850 |
| Adjustable Pickup | 2–100 % (1% increments) |
| Time Delay | 0.1–10 s (adjustable) |
| Outputs | Programmable relay contacts; analog 4–20 mA; pulsing output (SE-330) |
| Reset | Front-panel switch or remote N.O. contact |
| CT Compatibility | Universal CT compatibility |
| Additional | Standard harmonics filtering; selectable contact operating mode; continuous and shorted-NGR detection |
Applications
Protecting resistance-grounded distribution networks, substation neutral monitoring, industrial motor-generator sets and large process plant earthing systems where timely ground-fault and NGR failure detection is critical.
We supply genuine Littelfuse protection relays from authorized channels. Based in Batam, Wulan Dari ships fast across Indonesia and Southeast Asia. Contact us for availability and request a quotation — competitive lead times and local support.
