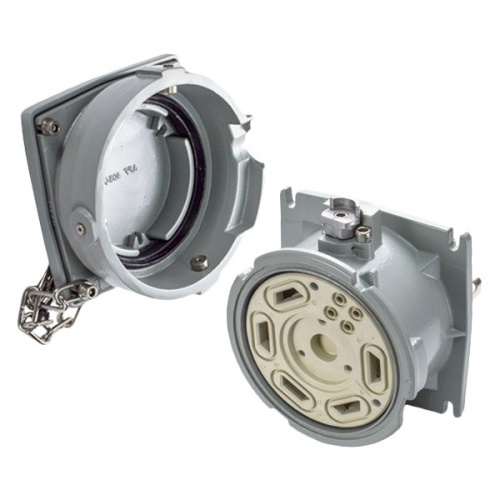

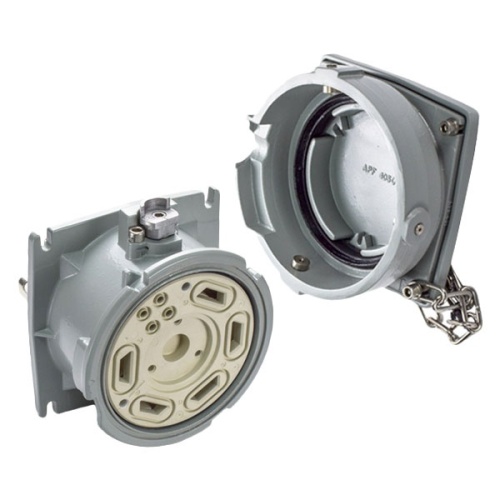

Meltric 49-44043-843 High Ampacity PF400 Receptacle 480 VAC 400A Gray Metal
$4,194$5,033 (-17%)
Meltric 49-44043-843 High Ampacity PF400 Receptacle 480 VAC 400A Size C 3P+G Gray Metal IP66,IP67 Lug Terminal Padlock Pawl UL 498,UL 1682
Meltric 49-44043-843 High Ampacity PF400 Receptacle 480 VAC 400A Size C 3P+G Gray Metal IP66,IP67 Lug Terminal Padlock Pawl UL 498,UL 1682
Specifications
| Receptacle Composition | Metal |
|---|---|
| Receptacle Voltage | 480 VAC |
| Receptacle Contact Configuration | 3P+G |
| Receptacle Color | Gray |
| Receptacle Amperage | 400 Amp |
| Receptacle Wiring Connection Type | Lug Terminal |
| Receptacle IP Rating | IP66 |
| Receptacle IP Rating | IP67 |
| Receptacle UL Listing | UL 498 |
| Receptacle UL Listing | UL 1682 |
| Receptacle Pawl Type | Padlock Pawl |
| Receptacle Min Wire Size | 2 AWG |
| Receptacle Max Wire Size | 750 MCM |
| Receptacle Size | Size C |
| Manufacturer | Meltric |
| Component | Receptacle |
| Meltric Series | PF400 High Ampacity |
Features
Auxiliary Pilot Contacts Provided for use with control circuits. They close after and open before the phase contacts.
Mechanical Locking System Ensures safety and watertightness. Mechanical lock secures the inlet to the receptacle and engages the auxiliary/pilot contacts.
Casing Epoxy/powder coated aluminum material offers great resistance to harsh environments.
Silver Pressure Contacts Silver material and self-cleaning action provides maximum conductivity and performance in dirty and corrosive conditions.
Safety Shutter Protects recessed female contacts and inhibits user access to live parts.
