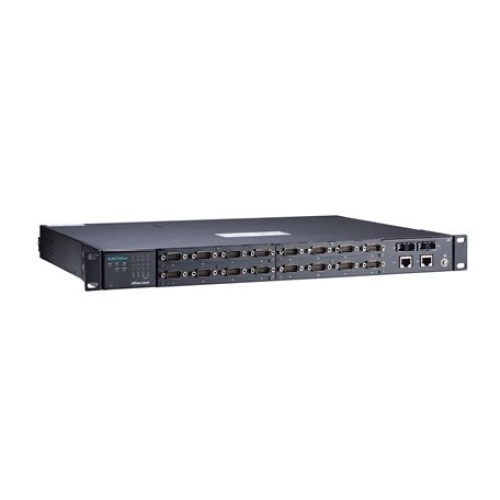

Moxa NPort S9650I-16-2HV-SSC-T Combo Device Server
$4,064$4,877 (-17%)
16-port RS-232/422/485 rugged device server, 2 10/100BaseT(X) ports with IEEE 1588v2 support, 88 to 300 VDC or 85 to 264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet single-mode SC connector fiber module
16-port RS-232/422/485 rugged device server, 2 10/100BaseT(X) ports with IEEE 1588v2 support, 88 to 300 VDC or 85 to 264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet single-mode SC connector fiber module
Specifications
| Manufacturer | Moxa |
|---|---|
| Component | Combo Device Server |
Features
Supports up to 4 managed Ethernet switch ports (fiber available with some optional network modules)
8/16-port RS-232/422/485 serial interface
Supports DNP3 and Modbus protocols
Ethernet redundancy with Turbo Ring/Chain and RSTP/STP supported
Real COM/TTY drivers for Windows and Linux
IEC 61850-3, IEEE 1613 (power substations) compliant
IEEE 1588v2 and IRIG-B time synchronization functions
Supports IEC 61850 MMS protocol
Security features based on IEC 62443/NERC CIP
-40 to 85°C wide operating temperature
