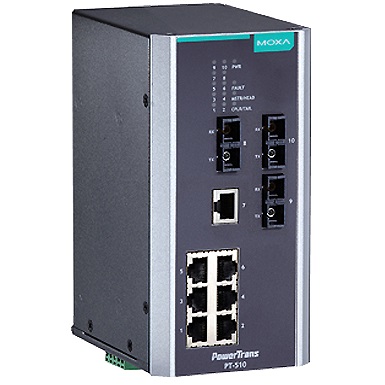

Moxa PT-510-3S-SC-48 Managed Switch
$2,308$2,769 (-17%)
Moxa PT-510-3S-SC-48 Managed Ethernet Switch (Din Rail Mount) IEC 61850-3 Power Substation certification with a total of 10 ports including 7 Fast Copper ports RJ45 (100 Mbps) and 3 Fast Fiber ports SC Single-Mode (100 Mbps). The PowerTrans PT-508/510 is designed to meet the demands of power substation automation…

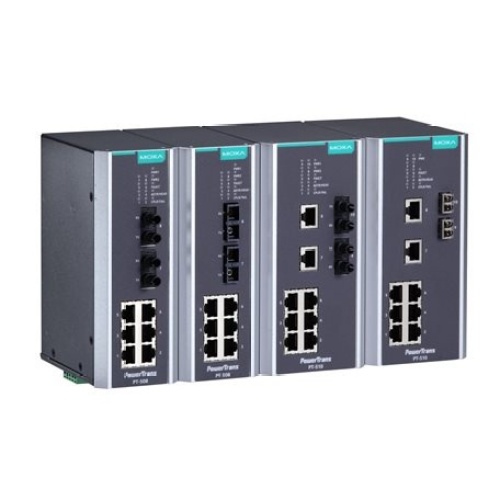

Moxa PT-510-3S-SC-48 Managed Ethernet Switch (Din Rail Mount) IEC 61850-3 Power Substation certification with a total of 10 ports including 7 Fast Copper ports RJ45 (100 Mbps) and 3 Fast Fiber ports SC Single-Mode (100 Mbps). The PowerTrans PT-508/510 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508/510’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall-mounting design of the PT-508/510 makes network planning easy, and allows greater flexibility by letting you install up to 8/10 Fast Ethernet ports for power distribution applications.
Specifications
| Min. # Fast Copper Ports | At Least 1 Fast Copper RJ45 Port |
|---|---|
| Certification | IEC 61850-3 Certified |
| Min. # Fast Copper Ports | At Least 2 Fast Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 3 Fast Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 4 Fast Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 5 Fast Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 7 Fast Copper RJ45 Port |
| Switch Mounting | Din Rail |
| Switch Voltage Input | 24 VDC |
| Switch Power Connection | Wire Terminals |
| Switch Ruggedized | Extended Temperature |
| Switch Management | Managed |
| Switch Temperature Range | -40F To 185F |
| Min. # Fast Fiber SC Ports | At Least 3 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 1 Fast Fiber SC Port Single |
| Min. # Fast Fiber SC Ports | At Least 2 Fast Fiber SC Port Single |
| Switch POE Ports | No POE Ports |
| Switch Copper Ports Fast (100 Mbps) | 7 RJ45 Ports |
| Switch Total Ports | 10 |
| Switch Fiber Ports Single Mode Fast (100 Mbps) | 3 SC Single Mode |
| Switch Power Redundancy | Redundant Power Supplies |
| Switch Model | Moxa EDS PT |
| Switch All Ports | 7 Fast Copper RJ45-3 Fast Fiber SC Single |
| Manufacturer | Moxa |
| Component | Managed Ethernet Switch |
Features
IEC 61850-3 and IEEE 1613 compliant
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
Isolated universal 24 VDC or 48 VDC redundant power inputs
Wide 110/220 VDC/VAC power supply range
Modbus TCP, LLDP, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SNMPv3, and SSH supported
-40 to 85°C operating temperature range
