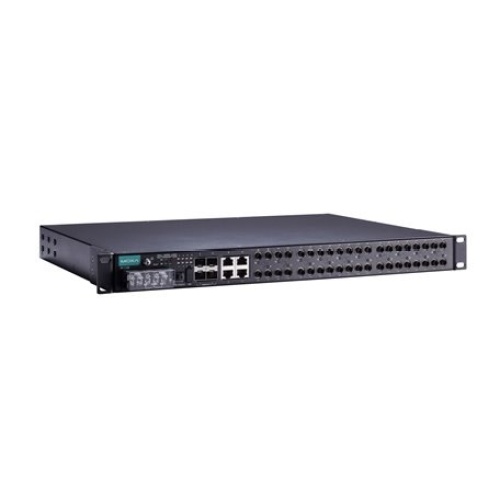

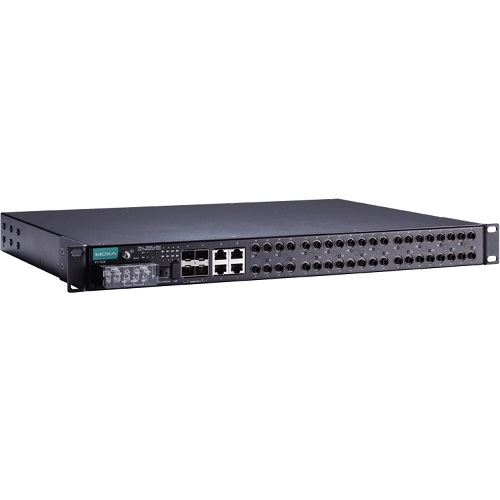

Moxa PT-7528-20MSC-4TX-4GSFP-HV-HV Managed Switch
$5,553$6,664 (-17%)
Moxa PT-7528-20MSC-4TX-4GSFP-HV-HV Managed Ethernet Switch (Rack Mount) IEC 61850-3 Power Substation certification with a total of 24 ports including 24 ports including 4 Fast Copper ports RJ45 (100 Mbps) and 20 Fast Fiber ports SC Multi-Mode (100 Mbps) with 4 Uplink Ports Gigabit Copper RJ45 (1000 Mbps). Operating…
Moxa PT-7528-20MSC-4TX-4GSFP-HV-HV Managed Ethernet Switch (Rack Mount) IEC 61850-3 Power Substation certification with a total of 24 ports including 24 ports including 4 Fast Copper ports RJ45 (100 Mbps) and 20 Fast Fiber ports SC Multi-Mode (100 Mbps) with 4 Uplink Ports Gigabit Copper RJ45 (1000 Mbps). Operating Temperature: -40 to 185°F. Dual Isolated Power Supplies 110-220 VDC. The PowerTrans PT-7528 series is designed for power substation automation applications that operate in extremely harsh environments. The PT-7528 series supports Moxa’s new Noise Guard technology, is compliant with IEC 61850-3, and its EMC immunity exceeds IEEE 1613 Class 2 standards to ensure zero packet loss while transmitting at wire speed. The PT-7528 series also features critical packet prioritization (GOOSE, SMVs, and PTP), a built-in MMS server, and a configuration wizard designed specifically for substation automation. With Gigabit Ethernet, redundant ring, and 110/220 VDC/VAC isolated redundant power supplies, the PT-7528 series further increases the reliability of your communications and saves cabling/wiring costs. The wide range of PT-7528 models available support Multiple types of port configuration, with up to 28 copper or fiber ports and 4 gigabit ports for uplink. Taken together, these features allow greater flexibility, making the PT-7528 suitable for a variety of industrial applications.
Specifications
| Min. # Fast Copper Ports | At Least 1 Fast Copper RJ45 Port |
|---|---|
| Certification | IEC 61850-3 Certified |
| Min. # Fast Copper Ports | At Least 2 Fast Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 3 Fast Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 4 Fast Copper RJ45 Port |
| Switch Mounting | Din Rail |
| Switch Power Connection | Wire Terminals |
| Switch Ruggedized | Extended Temperature |
| Switch Management | Managed |
| Switch Temperature Range | -40F To 185F |
| Switch Voltage Input | 110 VDC |
| Switch Voltage Input | 230 VDC |
| Switch Ruggedized | Isolated Power Supply |
| Switch Fiber Ports Multi Mode Fast (100 Mbps) | 20 SC Multi Mode |
| Min. # Fast Fiber SC Ports | At Least 1 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 2 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 3 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 4 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 5 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 6 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 7 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 8 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 9 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 10 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 11 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 12 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 13 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 14 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 15 Fast Fiber SC Port Multi |
| Min. # Fast Fiber SC Ports | At Least 16 Fast Fiber SC Port Multi |
| Min. # Gigabit Fiber SC Ports | At Least 17 Fast Fiber SC Port Multi |
| Min. # Gigabit Fiber SC Ports | At Least 18 Fast Fiber SC Port Multi |
| Min. # Gigabit Fiber SC Ports | At Least 19 Fast Fiber SC Port Multi |
| Min. # Gigabit Fiber SC Ports | At Least 20 Fast Fiber SC Port Multi |
| Switch POE Ports | No POE Ports |
| Switch Copper Ports Fast (100 Mbps) | 4 RJ45 Ports |
| Switch Total Ports | 24 |
| Switch Power Redundancy | Redundant Power Supplies |
| Switch Model | Moxa EDS PT |
| Switch All Ports | 4 Fast Copper RJ45-20 Fast Fiber SC Multi |
| Manufacturer | Moxa |
| Component | Managed Ethernet Switch |
Features
IEC 61850-3, IEEE 1613 (power substations) compliant
Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
Noise Guard™ wire speed zero packet loss technology
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
Isolated redundant power inputs with universal 24 VDC, 48 VDC, or 110/220 VDC/VAC power supply range
-40 to 85°C operating temperature range
