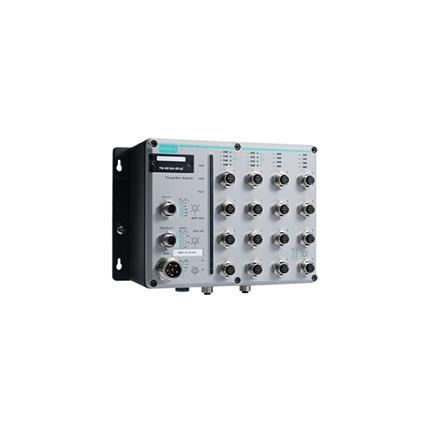

Moxa TN-5518A-8PoE-2GTX-WV-CT-T Managed Ethernet Switch
$4,274$5,128 (-17%)
Moxa TN-5518A-8PoE-2GTX-WV-CT-T Conformal Coating Managed Ethernet Switch with 18 ports including 8 Fast Copper PoE ports M12 (100 Mbps), 8 Fast Copper ports M12 (100 Mbps) and 2 Gigabit Copper ports M12 (1000 Mbps), Extended Temp -40 to 75 C operating temperature, dual redundant power inputs 16.8 to 137.5 VDC (24-110…

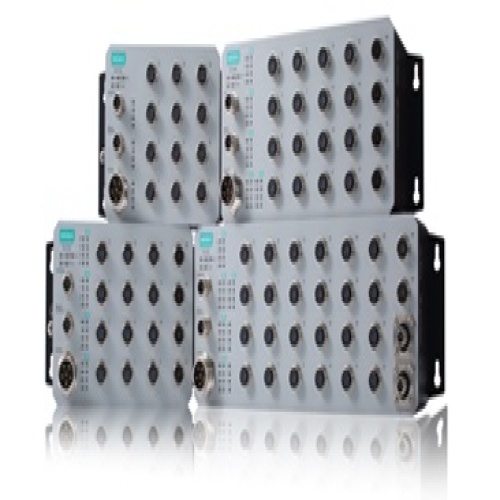

Moxa TN-5518A-8PoE-2GTX-WV-CT-T Conformal Coating Managed Ethernet Switch with 18 ports including 8 Fast Copper PoE ports M12 (100 Mbps), 8 Fast Copper ports M12 (100 Mbps) and 2 Gigabit Copper ports M12 (1000 Mbps), Extended Temp -40 to 75 C operating temperature, dual redundant power inputs 16.8 to 137.5 VDC (24-110 VDC). EN50155 certified ideal for railway applications. The ToughNet TN-5518A-8PoE series M12 managed Ethernet switches are designed for railway applications, such as rolling stock, and wayside installations. The TN series switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5518A-8PoE series Ethernet switches provide 16 Fast Ethernet M12 ports with 8 IEEE 802.3at/af compliant PoE (Power-over-Ethernet) ports and 2 ports on the down side to provide the Gigabit Ethernet interface with an optional bypass relay function. The PoE switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones.
Specifications
| Min. # Fast Copper Ports | At Least 1 Fast Copper M12 Port |
|---|---|
| Certification | EN50155 Certified |
| Min. # Fast Copper Ports | At Least 9 Fast Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 10 Fast Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 11 Fast Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 12 Fast Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 13 Fast Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 14 Fast Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 15 Fast Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 16 Fast Copper RJ45 Port |
| Min. # Gigabit Copper Ports | At Least 1 Gigabit Copper RJ45 Port |
| Min. # Gigabit Copper Ports | At Least 2 Gigabit Copper RJ45 Port |
| Min. # Fast Copper Ports | At Least 2 Fast Copper M12 Port |
| Min. # Fast Copper Ports | At Least 3 Fast Copper M12 Port |
| Min. # Fast Copper Ports | At Least 4 Fast Copper M12 Port |
| Min. # Fast Copper Ports | At Least 5 Fast Copper M12 Port |
| Min. # Fast Copper Ports | At Least 6 Fast Copper M12 Port |
| Min. # Fast Copper Ports | At Least 7 Fast Copper M12 Port |
| Min. # Fast Copper Ports | At Least 8 Fast Copper M12 Port |
| Switch Mounting | Din Rail |
| Switch Voltage Input | 24 VDC |
| Switch Voltage Input | 48 VDC |
| Switch Temperature Range | -40F To 167F |
| Switch Ruggedized | Extended Temperature |
| Switch Management | Managed |
| Switch Power Connection | M23 Connectors |
| Switch Ruggedized | Vibration Resistant |
| Switch Voltage Input | 72 VDC |
| Switch Voltage Input | 96 VDC |
| Switch Voltage Input | 110 VDC |
| Switch Ruggedized | Conformal Coating |
| Switch Copper Ports Gigabit (1000) Mbps | 2 M12 Ports |
| Switch Power Redundancy | Redundant Power Inputs |
| Switch Total Ports | 18 |
| Switch Copper Ports Fast (100 Mbps) | 16 M12 Ports |
| Switch Model | Moxa EDS TN |
| Switch POE Ports | 8 POE Fast Ports |
| Switch All Ports | 16 Fast Copper M12-2 Gigabit Copper M12 |
| Switch All Ports | 8 Fast POE Copper M12-8 Fast Copper M12-2 Gigabit Copper M12 |
| Manufacturer | Moxa |
| Component | Managed Ethernet Switch |
Features
Up to 2 Gigabit ports with optional bypass relay function
8 IEEE 802.3at/af compliant PoE and Ethernet combo ports
Isolated power with 24 to 110 VDC power supply range
Complies with all EN 50155 mandatory test items
-40 to 75°C operating temperature range
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
