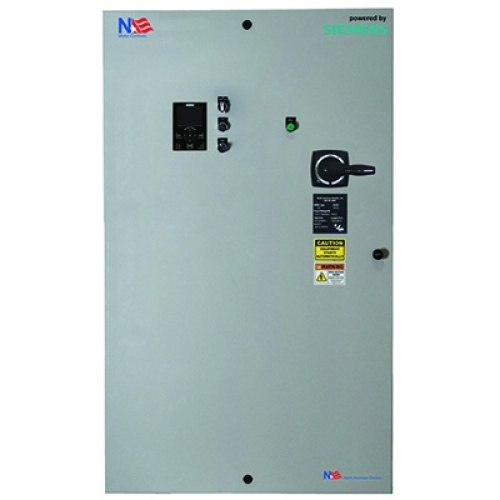

NAE 2155B-350F2P00-32A-4-000 350 HP Soft Starter, 480V Three Phase
$29,156$34,988 (-17%)
NAE 2155B-350F2P00-32A-4-000 – 350 HP, 480V, General Purpose, Constant Torque, Standard Package includes: Door Mounted IOP-2 Keypad, Start Pushbutton, HOA Switch, Potentiometer, Run Light, Surge Suppressor, Line Reactor, 452 Amps, NEMA 12 Enclosure, Flanged Circuit Breaker Disconnect, Dimensions 90'' H, 72'' W, 24''…
NAE 2155B-350F2P00-32A-4-000 – 350 HP, 480V, General Purpose, Constant Torque, Standard Package includes: Door Mounted IOP-2 Keypad, Start Pushbutton, HOA Switch, Potentiometer, Run Light, Surge Suppressor, Line Reactor, 452 Amps, NEMA 12 Enclosure, Flanged Circuit Breaker Disconnect, Dimensions 90'' H, 72'' W, 24'' D, Siemens G120X Series Drive, Chassis Model # 6SL32203YE600CF0, Two (2) Year ''Bumper to Bumper'' Warranty
Specifications
| VFD Torque | Constant Torque |
|---|---|
| VFD Horsepower Output | 350 HP |
| VFD Input Voltage | 480 Volt Three Phase |
| VFD Output Voltage | 480 Volt Three Phase |
| VFD NEMA-IP Rating | NEMA 12 |
| Manufacturer | NAE |
| VFD Fused Disconnect | Circuit Breaker |
| VFD Application | General Purpose |
| VFD Line | G120X |
| VFD Amperage Output | 452 Amp |
Features
NEMA 12 / Heavy Duty Advanced Design for Maximum Cooling
Combination Circuit Breaker Disconnect:Flanged
Pre-Packaged Drive Solutions for General Application
Remote Start and Speed Control Capable with Analog Input
Line Side Harmonic Filtering
Surge Suppressor
Service Entry Rated
UL 508A Certified
