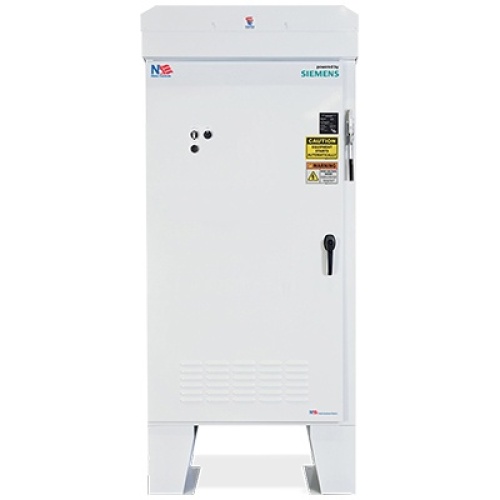

NAE 2155B-350FRP00-25J-4-000 350 HP Soft Starter, 480V Three Phase
$30,254$36,305 (-17%)
NAE 2155B-350FRP00-25J-4-000 – 350 HP, 480V, General Purpose, Constant Torque, Economy Package includes: Start Pushbutton, HOA Switch, Potentiometer, Surge Suppressor, IOP-2 Drive Mounted Keypad, Line Reactor, 452 Amps, NEMA 3R Enclosure, Flanged Circuit Breaker Disconnect, Dimensions 65'' H, 40'' W, 22'' D, Siemens…
NAE 2155B-350FRP00-25J-4-000 – 350 HP, 480V, General Purpose, Constant Torque, Economy Package includes: Start Pushbutton, HOA Switch, Potentiometer, Surge Suppressor, IOP-2 Drive Mounted Keypad, Line Reactor, 452 Amps, NEMA 3R Enclosure, Flanged Circuit Breaker Disconnect, Dimensions 65'' H, 40'' W, 22'' D, Siemens G120X Series Drive, Chassis Model # 6SL32203YE600CF0, Two (2) Year ''Bumper to Bumper'' Warranty
Specifications
| VFD Torque | Constant Torque |
|---|---|
| VFD Horsepower Output | 350 HP |
| VFD Input Voltage | 480 Volt Three Phase |
| VFD Output Voltage | 480 Volt Three Phase |
| VFD NEMA-IP Rating | NEMA 3R |
| Manufacturer | NAE |
| VFD Fused Disconnect | Circuit Breaker |
| VFD Application | General Purpose |
| VFD Line | G120X |
| VFD Amperage Output | 452 Amp |
Features
NEMA 3R / Fully Gasketed / Heavy Duty Heavy Duty Lifting Ears
Combination Circuit Breaker Disconnect:Flanged
Easy-to-Use Drive for Basic Applications
Remote Start and Speed Control Capable with Analog Input
Line Side Harmonic Filtering
Surge Suppressor
Service Entry Rated
Padlockable Door and Disconnect
UL 508A Certified
