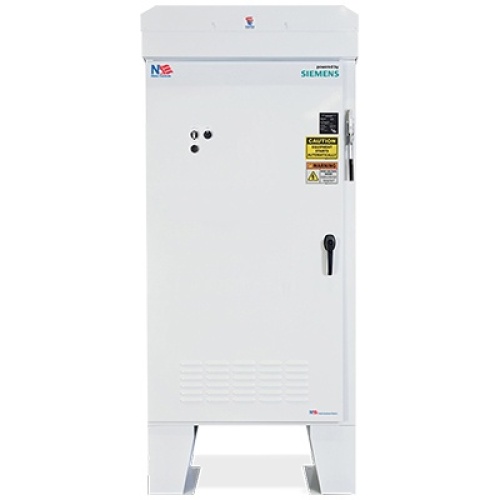

NAE 2155B-500FRP00-25J-4-000 500 HP VFD, 480V, CT
$46,878$56,254 (-17%)
NAE 2155B-500FRP00-25J-4-000 – 500 HP, 480V, General Purpose, Constant Torque, Economy Package includes: Start Pushbutton, HOA Switch, Potentiometer, Surge Suppressor, IOP-2 Drive Mounted Keypad, Line Reactor, 591 Amps, NEMA 3R Enclosure, Flanged Circuit Breaker Disconnect, Dimensions 90'' H, 78'' W, 24'' D, Siemens…
NAE 2155B-500FRP00-25J-4-000 – 500 HP, 480V, General Purpose, Constant Torque, Economy Package includes: Start Pushbutton, HOA Switch, Potentiometer, Surge Suppressor, IOP-2 Drive Mounted Keypad, Line Reactor, 591 Amps, NEMA 3R Enclosure, Flanged Circuit Breaker Disconnect, Dimensions 90'' H, 78'' W, 24'' D, Siemens G120X Series Drive, Chassis Model # 6SL32203YE640CF0, Two (2) Year ''Bumper to Bumper'' Warranty
Specifications
| VFD Torque | Constant Torque |
|---|---|
| VFD Horsepower Output | 500 HP |
| VFD Input Voltage | 480 Volt Three Phase |
| VFD Output Voltage | 480 Volt Three Phase |
| VFD NEMA-IP Rating | NEMA 3R |
| Manufacturer | NAE |
| VFD Fused Disconnect | Circuit Breaker |
| VFD Application | General Purpose |
| VFD Line | G120X |
| VFD Amperage Output | 591 Amp |
Features
NEMA 3R / Fully Gasketed / Heavy Duty Heavy Duty Lifting Ears
Combination Circuit Breaker Disconnect:Flanged
Easy-to-Use Drive for Basic Applications
Remote Start and Speed Control Capable with Analog Input
Line Side Harmonic Filtering
Surge Suppressor
Service Entry Rated
Padlockable Door and Disconnect
UL 508A Certified
