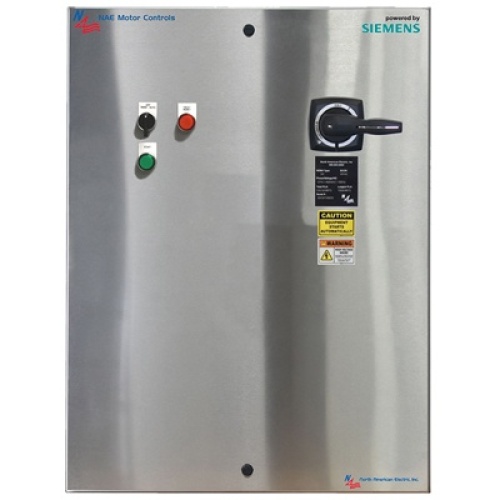

NAE 3044B-1K04XP00-24H-4-000 1000 HP Soft Starter Panel, 1139A, 480V
$29,713$35,656 (-17%)
NAE 1000 HP soft starter panel with 1139A rating, 480V, NEMA 4X stainless steel enclosure, Siemens 3RW5558-6HA14 chassis, circuit breaker disconnect, illuminated pushbuttons, HOA switch, chassis mounted high-feature HMI, ideal for motor control applications.
NAE 3044B-1K04XP00-24H-4-000 1000 HP Soft Starter Panel, 1139A, 480V
The NAE 3044B-1K04XP00-24H-4-000 soft starter panel is engineered to deliver superior motor control and reduced voltage starting for large industrial motors rated at 1000 HP and operating at 480 volts. Housed in a durable NEMA 4X stainless steel washdown enclosure, this panel features a Siemens 3RW5558-6HA14 chassis and a 1139 amp circuit breaker disconnect to ensure safe and reliable operation. It includes illuminated start and fault/reset pushbuttons, a Hand/Off/Auto selector switch, and a chassis mounted high-feature detachable HMI with color display and micro SD card slot for easy configuration and monitoring. Designed for heavy starting compliant with Class 10E, this soft starter panel reduces electrical and mechanical stress on motors, improving operational efficiency and extending equipment life.
Key Features
- Supports motor ratings from 7.5 HP up to 1000 HP
- Combination circuit breaker disconnect for secure power isolation
- NEMA 4X stainless steel washdown enclosure for harsh environments
- Siemens 3RW55 Series chassis (Model 3RW5558-6HA14)
- Chassis mounted high-feature detachable HMI with color display and micro SD card slot
- Three-phase control LED indicators for operational status
- Heavy starting compliant with Class 10E standards
- Integrated bypass contact system reduces heat and energy loss
- Soft starting and smooth ramp-down ensure motor protection
- Current limitation and motor overload protection included
- Padlockable door and disconnect for enhanced safety
- UL 508A certified for industrial safety compliance
- Standard 2-year warranty with optional 3-year warranty including lightning and surge protection
- NAE’s no-hassle chassis exchange program for quick service
Technical Specifications
| Model Number | 3044B-1K04XP00-24H-4-000 |
|---|---|
| Horsepower | 1000 HP |
| Voltage | 480 VAC |
| Amperage | 1139 Amps |
| Enclosure Type | NEMA 4X Stainless Steel Washdown |
| Starter Chassis | Siemens 3RW5558-6HA14 |
| Disconnect Type | Circuit Breaker |
| Dimensions (HxWxD) | 60″ x 48″ x 12″ |
| Control Interface | Chassis mounted high-feature detachable HMI |
| Starting Class | Class 10E |
| Warranty | Standard 2-year or optional 3-year with lightning & surge protection |
| Certification | UL 508A Certified |
Package Includes
- Illuminated start pushbutton
- Hand/Off/Auto (HOA) selector switch
- Illuminated fault/reset pushbutton
- Combination circuit breaker disconnect (through-door operation)
- Padlockable door and disconnect
- Chassis mounted high-feature detachable HMI with color display
Typical Applications
- Large pumps and compressors in heavy industry
- Mining and mineral processing equipment
- Water and wastewater treatment plants
- Industrial HVAC motor control systems
- Steel mills and manufacturing plants
