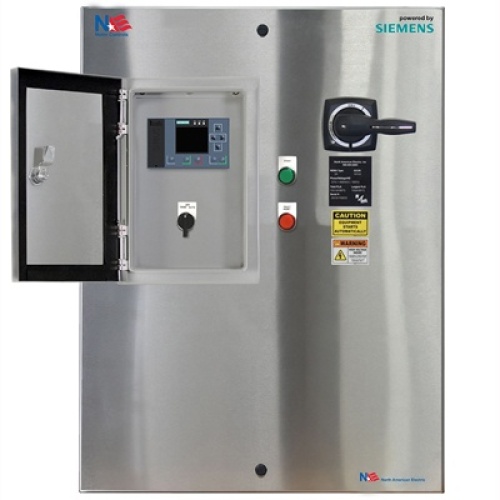

NAE 3144B-2004XP00-32B-2-000 200 HP Soft Starter Panel, 520A, 240V
$24,891$29,869 (-17%)
NAE 3144B-2004XP00-32B-2-000 soft starter panel, 200 HP, 520A, 240V, heavy duty NEMA 4X stainless steel washdown enclosure with Siemens 3RW5554-6HA14 chassis and circuit breaker disconnect.
NAE 3144B-2004XP00-32B-2-000 200 HP Soft Starter Panel, 520 Amps, 240V
The NAE 3144B-2004XP00-32B-2-000 soft starter panel is engineered for heavy duty control of 200 HP motors running at 240 volts. This reduced voltage starter delivers smooth motor start and stop functions, reducing mechanical shock and electrical demand. Constructed with a durable NEMA 4X stainless steel washdown enclosure, it is suitable for tough industrial environments. Integration of the Siemens 3RW5554-6HA14 chassis with a combination circuit breaker disconnect ensures high reliability and easy servicing. The panel includes a door-mounted high-feature HMI, illuminated pushbuttons, and fault reset functionality for comprehensive motor control and monitoring.
Key Features
- 200 HP rating for a wide range of industrial motor controls
- 520 Amp capacity for robust current handling
- NEMA 4X stainless steel washdown enclosure for corrosion resistance
- Siemens 3RW5554-6HA14 chassis for dependable operation
- Combination circuit breaker disconnect for safety and convenience
- Detachable HMI with color display, local interface, and micro SD card slot
- Heavy starting with 300% full load amps for 20 seconds (Class 20E)
- Integrated bypass contact system for efficient motor operation
- Soft starting and smooth ramp-down to protect equipment
- Current limitation and motor overload protection included
- Padlockable door and disconnect for added security
- UL 508A certified
Technical Specifications
| Starter Coil Voltage | 240 VAC |
|---|---|
| Starter NEMA Size | NEMA 4X |
| Manufacturer | NAE |
| Starter Disconnect Type | Circuit Breaker |
| Starter Amperage | 520 Amp |
| Component | Soft Starter Panel |
| Starter Horsepower | 200 HP |
| Enclosure Material | Stainless Steel |
| Enclosure Type | Washdown Duty |
| Dimensions (HxWxD) | 60″ x 48″ x 12″ |
| Siemens Chassis Model | 3RW5554-6HA14 |
| Certification | UL 508A Certified |
Package Includes
- Illuminated start pushbutton
- Hand/Off/Auto (HOA) selector switch
- Illuminated fault / reset pushbutton
- Door mounted high feature HMI
- Through-door circuit breaker disconnect
Typical Applications
- Industrial pumps and compressors
- HVAC motor control systems
- Conveyors in manufacturing processes
- Water and wastewater treatment facilities
- Food processing and packaging equipment
