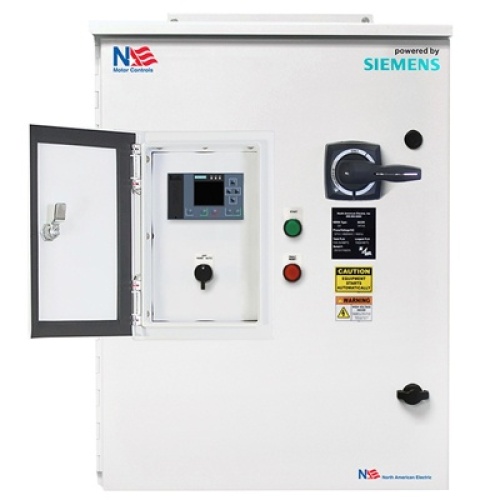

NAE 3144B-4003RP00-32B-2-000 400 HP Soft Starter Panel, 900A, 240V
$28,164
NAE 400 HP soft starter panel with 900A rating, 240V coil voltage, NEMA 3R heavy duty enclosure, Siemens 3RW5558-6HA14 chassis, circuit breaker disconnect, and door-mounted high feature HMI for advanced motor control.
NAE 3144B-4003RP00-32B-2-000 400 HP Soft Starter Panel, 900A, 240V
The NAE 3144B-4003RP00-32B-2-000 soft starter panel delivers 400 HP motor control at 240 volts with a 900-amp rating, designed for heavy-duty applications requiring reliable reduced voltage starting. Housed in a fully gasketed NEMA 3R enclosure, this panel is suitable for outdoor and harsh environments. Utilizing the Siemens 3RW5558-6HA14 chassis, it features an integrated bypass contact system, combination circuit breaker disconnect, and a door-mounted high feature HMI with color display for easy parameterization and monitoring. This soft starter panel provides smooth ramp-up and ramp-down, current limitation, and motor overload protection, enhancing equipment life and operational efficiency.
Key Features
- 400 HP rating with 900 Amp capacity at 240 VAC
- Fully gasketed NEMA 3R heavy-duty enclosure
- Siemens 3RW55 Series chassis model 3RW5558-6HA14
- Combination circuit breaker disconnect for safety
- Door-mounted detachable HMI with color display and micro SD card slot
- Three-phase control LEDs for status indication
- Heavy starting capability with Class 20E (300% FLA for 20 seconds)
- Integrated bypass contact system for efficiency
- Soft starting and smooth ramp-down protection
- Current limitation and motor overload protection
- Padlockable door and disconnect for enhanced security
- UL 508A certified
Technical Specifications
| Starter Horsepower | 400 HP |
|---|---|
| Starter Amperage | 900 Amp |
| Starter Coil Voltage | 240 VAC |
| Starter NEMA Size | NEMA 3R |
| Manufacturer | NAE |
| Starter Disconnect Type | Circuit Breaker |
| Chassis Model | Siemens 3RW5558-6HA14 |
| Enclosure Type | Fully Gasketed NEMA 3R |
| Dimensions (H x W x D) | 60″ x 48″ x 12″ |
| Certification | UL 508A Certified |
Package Includes
- Illuminated start pushbutton
- Hand/Off/Auto (HOA) selector switch
- Illuminated fault/reset pushbutton
- Door-mounted high feature detachable HMI
- Circuit breaker disconnect
Typical Applications
- Industrial pump motor control
- HVAC system motors in commercial buildings
- Conveyor motors in manufacturing plants
- Fans and blowers in processing industries
- Heavy-duty mixers and crushers
