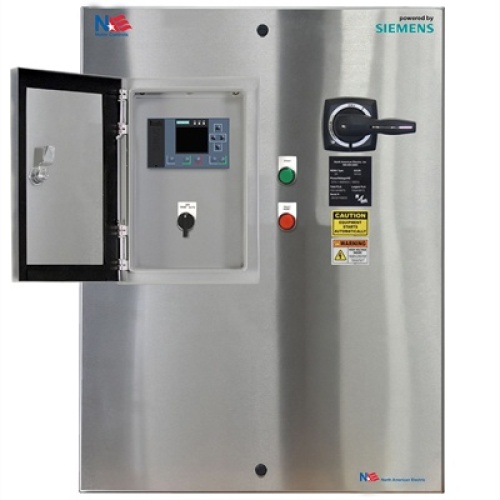

NAE 3144B-7004XP00-24H-4-000 700 HP Soft Starter Panel, 840A, 480V
$25,712$30,855 (-17%)
NAE 3144B-7004XP00-24H-4-000 is a 700 HP soft starter panel rated 840 amps at 480 volts, featuring a NEMA 4X stainless steel washdown enclosure, Siemens 3RW5556 chassis, circuit breaker disconnect, and through-door operation with advanced motor control functions.
NAE 3144B-7004XP00-24H-4-000 700 HP Soft Starter Panel, 840A, 480V
The NAE 3144B-7004XP00-24H-4-000 soft starter panel provides advanced motor control for 700 HP motors operating on 480 volts. Designed with a durable NEMA 4X stainless steel enclosure, this panel withstands harsh industrial conditions including washdown environments. Equipped with the Siemens 3RW5556-6HA14 chassis and a circuit breaker disconnect, it ensures safe, reliable, and smooth reduced voltage starting. The panel includes illuminated pushbuttons, Hand/Off/Auto selector switch, and a detachable high-feature HMI for easy parameterization and monitoring. Rated at 840 amps, it supports heavy starting currents and protects motors against overload and current spikes.
Key Features
- 700 HP rating at 480 VAC
- 840 Amp starter current
- NEMA 4X stainless steel washdown enclosure
- Siemens 3RW55 chassis model 3RW5556-6HA14
- Circuit breaker disconnect with padlockable door
- Detachable HMI with color display and keypad interface
- Illuminated start, fault/reset pushbuttons
- Hand/Off/Auto selector switch for operational flexibility
- Integrated bypass contact system for improved efficiency
- UL 508A certified for safety compliance
Technical Specifications
| Specification | Details |
|---|---|
| Horsepower Rating | 700 HP |
| Voltage | 480 VAC |
| Amperage | 840 Amps |
| Enclosure Type | NEMA 4X Stainless Steel Washdown |
| Dimensions (HxWxD) | 60″ x 48″ x 12″ |
| Chassis Model | Siemens 3RW5556-6HA14 |
| Disconnect Type | Circuit Breaker |
| Control Features | Illuminated pushbuttons, HOA selector switch, Detachable HMI |
| Certification | UL 508A Certified |
Package Includes
- Illuminated start pushbutton
- Hand/Off/Auto (HOA) selector switch
- Illuminated fault/reset pushbutton
- Detachable high-feature HMI with color display
- Circuit breaker disconnect (through-door operation)
Typical Applications
- Heavy industrial pumps and compressors
- Mining and mineral processing equipment
- Steel mills and metal fabrication plants
- Large HVAC and ventilation systems
- Paper and pulp industry machinery
