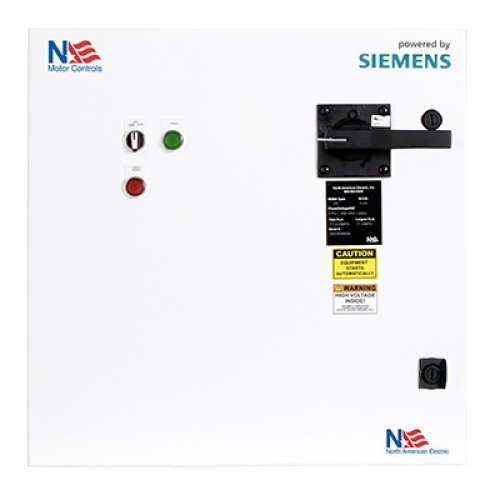

NAE 3144B-7503RP00-24H-4-000 750 HP Soft Starter Panel, 900A, 480V
$23,021$27,625 (-17%)
NAE 750 HP soft starter panel with 900A, 480V. Features NEMA 3R heavy-duty enclosure, Siemens 3RW5558 chassis, circuit breaker disconnect, detachable color HMI, and advanced motor protection for smooth motor control and reduced voltage starting.
NAE 3144B-7503RP00-24H-4-000 750 HP Soft Starter Panel, 900A, 480V
The NAE 3144B-7503RP00-24H-4-000 soft starter panel is engineered for high power motor control applications, supporting up to 750 HP at 480 volts and 900 amps. Housed in a fully gasketed NEMA 3R heavy-duty enclosure, this panel is ideal for outdoor or harsh industrial conditions. Featuring a Siemens 3RW5558-6HA14 chassis, it includes a circuit breaker disconnect for safety and a detachable high feature HMI with color display for easy control and parameterization. Designed for smooth soft starting and ramp-down, it provides heavy starting capabilities with current limitation and motor overload protections to enhance motor life and reliability.
Key Features
- 750 HP motor rating at 480V with 900 Amp capacity
- Fully gasketed NEMA 3R heavy-duty enclosure
- Combination circuit breaker disconnect for operator safety
- Siemens 3RW55 series chassis model 3RW5558-6HA14
- Detachable HMI with color display and local interface
- Three-phase control LEDs for status indication
- Heavy starting: 300% full load amps for 20 seconds (Class 20E)
- Integrated bypass contact system for energy efficiency
- Soft starting and smooth ramp-down protect motor and reduce wear
- Current limitation and motor overload protection included
- Padlockable door and disconnect for secure operation
- UL 508A certified for industrial safety standards
Technical Specifications
| Starter Horsepower | 750 HP |
|---|---|
| Voltage | 480 VAC |
| Starter Amperage | 900 Amp |
| Starter Coil Voltage | 480 VAC |
| Starter NEMA Size | NEMA 3R |
| Manufacturer | NAE |
| Starter Disconnect Type | Circuit Breaker |
| Enclosure Type | Fully Gasketed Heavy Duty |
| Dimensions (HxWxD) | 60″ x 48″ x 12″ |
| Siemens Chassis Model | 3RW5558-6HA14 |
Package Includes
- Illuminated start pushbutton
- Hand/Off/Auto (HOA) selector switch
- Illuminated fault/reset pushbutton
- Detachable high feature HMI with color display and local interface
- Through-door circuit breaker disconnect
Typical Applications
- Large pump motor control
- Heavy-duty conveyor systems
- Mining and mineral processing motors
- Industrial compressors and blowers
- Water and wastewater treatment plants
