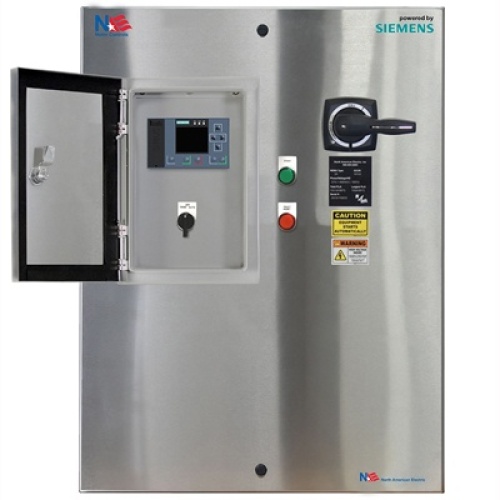

NAE 3144B-7504XP00-24H-4-000 750 HP Soft Starter Panel, 900A, 480V
$27,864$33,437 (-17%)
NAE 750 HP soft starter panel, 900A, 480V, NEMA 4X stainless steel enclosure, Siemens 3RW5558-6HA14 chassis, circuit breaker disconnect, through-door access, illuminated pushbuttons, HOA switch, and heavy-duty motor control features.
NAE 3144B-7504XP00-24H-4-000 750 HP Soft Starter Panel, 900A, 480V
The NAE 3144B-7504XP00-24H-4-000 soft starter panel is purpose-built for 750 HP motors operating at 480 volts, delivering reliable reduced voltage starting and advanced motor control. The heavy-duty design housed in a NEMA 4X stainless steel enclosure ensures durability in washdown and industrial applications. This panel features a Siemens 3RW5558-6HA14 chassis with a circuit breaker disconnect offering secure and convenient operation. Equipped with illuminated start and fault/reset pushbuttons, plus a Hand/Off/Auto selector switch, it provides user-friendly motor control. Rated for 900 amps, the soft starter supports heavy starting loads with integrated bypass contact system, overload protection, and smooth ramp-up/down capabilities.
Key Features
- 750 HP with 900 Amp capacity at 480 VAC
- NEMA 4X stainless steel washdown duty enclosure
- Combination circuit breaker disconnect with through-door access
- Siemens 3RW55 series chassis model 3RW5558-6HA14
- Detachable color display HMI mounted on chassis
- Illuminated start and fault/reset pushbuttons, HOA selector switch
- Heavy starting: 300% full load amps for 20 seconds (Class 20E)
- Integrated bypass contact system
- Soft starting and smooth ramp-down
- Current limitation and motor overload protection
- Parameterization via keypad interface
- Padlockable door and disconnect for safety
- UL 508A certified
Technical Specifications
| Specification | Details |
|---|---|
| Starter Horsepower | 750 HP |
| Voltage | 480 VAC |
| Amperage | 900 Amp |
| Enclosure Type | NEMA 4X Stainless Steel Washdown Duty |
| Dimensions (H x W x D) | 60″ x 48″ x 12″ |
| Disconnect Type | Circuit Breaker |
| Chassis Model | Siemens 3RW5558-6HA14 |
| Control Features | Illuminated pushbuttons, HOA selector switch, detachable HMI |
| Starting Class | Heavy Starting – Class 20E (300% FLA for 20 seconds) |
| Protection | Current limitation, motor overload protection |
| Parameterization | Keypad interface |
| Safety | Padlockable door and disconnect |
| Certification | UL 508A Certified |
Package Includes
- Illuminated start pushbutton
- Hand/Off/Auto (HOA) selector switch
- Illuminated fault/reset pushbutton
- Detachable chassis mounted HMI
- Circuit breaker disconnect with through-door access
- Siemens 3RW5558-6HA14 chassis
Typical Applications
- Large industrial pumps and compressors
- Heavy-duty fans and blowers
- Conveyor systems requiring smooth starting
- HVAC systems in commercial and industrial buildings
- Mining and process industries
