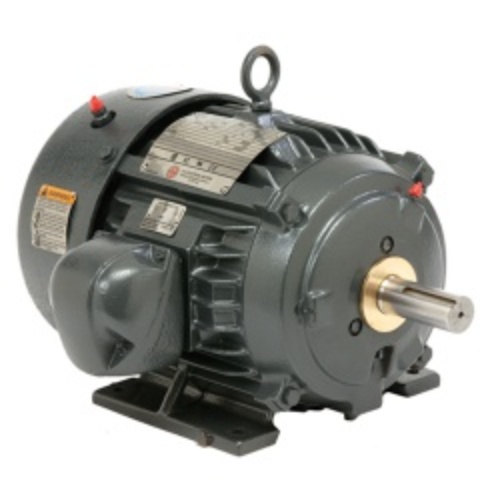

Nidec 8P400P1CG 400 HP TEFC Electric Motor, 460V, 3-Phase
$38,453$46,143 (-17%)
Nidec 8P400P1CG – General Purpose Three Phase, Totally Enclosed Fan Cooled (TEFC) 841 PLUS® motor is designed for constant speed and inverter duty applications in various industries, including petro-chemical, pulp & paper, automotive, mining, and waste treatment. It features an INVERTER GRADE® insulation system that…
Nidec 8P400P1CG – General Purpose Three Phase, Totally Enclosed Fan Cooled (TEFC) 841 PLUS® motor is designed for constant speed and inverter duty applications in various industries, including petro-chemical, pulp & paper, automotive, mining, and waste treatment. It features an INVERTER GRADE® insulation system that meets NEMA® MG-1 Part 31 standards, with Class F insulation and Class B rise at full load. The motor boasts an all cast iron construction with an IP55 enclosure, corrosion-resistant paint, and VBXX® bearing isolators for IP66 bearing protection. Additional features include regreasable open bearings, epoxy-coated rotor, and a 1.15 service factor on sine wave and 1.0 on inverter power. It supports 20:1 variable torque and 5:1 constant torque on inverter power, precision balance, and has a 5-year warranty. The motor also meets or exceeds IEEE 841 Standard 2009 and includes various conversion kits and provisions for enhanced versatility and durability.
Specifications
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
|---|---|
| Motor Voltage Phases | 3 Phase |
| Motor Insulation Class | Class F Insulation |
| Motor Horsepower | 400 HP |
| Motor Frequency | 60 Hz |
| Motor Voltage | 460 Volt |
| Motor RPM's | 3600 RPM |
| Motor Construction | Cast Iron |
| Manufacturer | Nidec |
| Motor Frame Model | 5008S |
Features
INVERTER GRADE® Insulation System (Meets NEMA® MG-1 Part 31)
Class F Insulation, Class B Rise At Full Load (Sine Wave Power)
All Cast Iron Construction, IP55 Enclosure
Corrosion Resistant Mill & Chem Duty Paint (250 Hour Salt Spray Test)
Stainless Steel Nameplate & Zinc Plated Hardware
40°C Ambient, NEMA® Design B Performance (Sine Wave Power)
VBXX® Bearing Isolators By Inpro/Seal On Both Ends For IP66 Bearing Protection
Same Size Regreasable Open Bearings, Brass Breathers/Drains
Roller Bearing Available As Conversion On 400 Frame & Up
Cast Iron Inner Bearing Caps (180 Frame & Larger)
5 Year Warranty (3 Years on Inverter Power)
External Grounding Provision, Epoxy Coated Rotor
20:1 Variable Torque
5:1 Constant Torque On Inverter Power
Precision Balance (< 0.05 In/Sec Vibration)
1.15 SF On Sine Wave / 1.0 SF On Inverter Power
Conversion Kits: C&D Flange, Drip Cover Kit (except 320-360)
Meets or exceeds IEEE 841 Standard 2009
