nVent Hoffman A74H7224LP3PT Steel Enclosure
$4,950$5,940 (-17%)

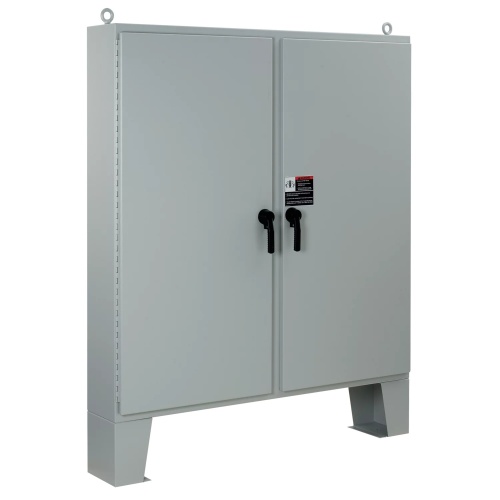

nVent Hoffman A74H7224LP3PT Steel Enclosure Two Door Steel Freestanding Enclosure with floorstands for additional height and access for cleaning under the enclosure. Type 4 ideal for indoor or outdoor applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments.…
nVent Hoffman A74H7224LP3PT Steel Enclosure Two Door Steel Freestanding Enclosure with floorstands for additional height and access for cleaning under the enclosure. Type 4 ideal for indoor or outdoor applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments. Includes continuous hinge door includes PowerGlide Handle with 3-point latching system with provisions for padlocking. Door includes data pocket, provisions for bondind and stay in place gasket. Body stiffeners, panel supports, grounding studs with gray polyester paint inside and out. Studs for adding backplate for mounting equipment.
Specifications
| Enclosure Environment Rating | Outdoor-Indoor |
|---|---|
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Interior Color | White |
| Enclosure Lock Type | Padlocking |
| Enclosure Interior Color | Gray |
| Enclosure Depth | 24" |
| Enclosure Composition | Painted Steel |
| Enclosure NEMA Rating | NEMA Type 4 |
| Enclosure Width | 72" |
| Enclosure Height | 74" |
| Enclosure Mount Type | Floor Mount |
| Enclosure Door Type | Solid |
| Component | Steel Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 12 |
| Manufacturer | Hoffman |
| Enclosure Latch Type | 3-Point |
Features
Seams continuously welded and ground smooth, no holes or knockouts
Removable centerpost permits easy panel installation
3-point latch system with PowerGlide padlocking handles
Body stiffeners
Return flange around the door opening excludes liquids and contaminants
Three-point latch for security and ease of use
Panel supports
Heavy-duty lifting eyes
12-in. floor stands are bolted-on to enclosure
Data pocket is high-impact thermoplastic
Heavy gauge continuous hinge with stainless steel hinge pin
Oil-resistant door gasket
Collar stud for mounting optional panels
Bonding provision on door
Provision for mounting fluorescent light
Grounding stud on body
