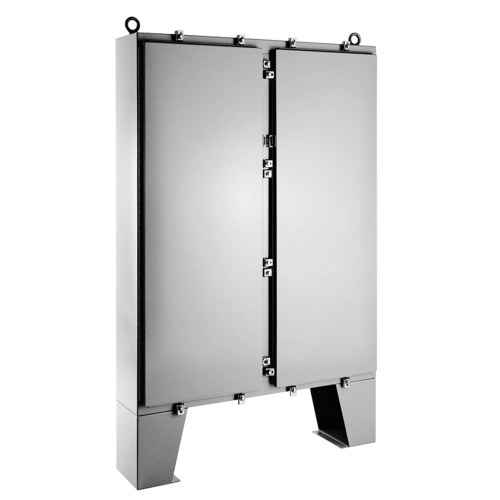

nVent Hoffman A74H72JULP Steel Enclosure
$5,319$6,383 (-17%)
nVent Hoffman A74H72JULP Steel Enclosure Two Door Steel Freestanding Enclosure with floorstands for additional height and access for cleaning under the enclosure. Type 4 rating with polyester powder coating make this enclosure ideal for outdoor environments or food processing applications where it is necessary to…
nVent Hoffman A74H72JULP Steel Enclosure Two Door Steel Freestanding Enclosure with floorstands for additional height and access for cleaning under the enclosure. Type 4 rating with polyester powder coating make this enclosure ideal for outdoor environments or food processing applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments. Includes continuous hinge door with stainless steel door clamp latches including provisions for padlocking. Door includes data pocket, provisions for bondind and stay in place gasket. Body stiffeners, panel supports, grounding studs with gray polyester paint inside and out. Studs for adding backplate for mounting equipment.
Specifications
| Enclosure Environment Rating | Outdoor-Indoor |
|---|---|
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Interior Color | White |
| Enclosure Lock Type | Padlocking |
| Enclosure Latch Type | Clamp |
| Enclosure Interior Color | Gray |
| Enclosure Depth | 24" |
| Enclosure Composition | Painted Steel |
| Enclosure NEMA Rating | NEMA Type 4 |
| Enclosure Width | 72" |
| Enclosure Height | 74" |
| Enclosure Mount Type | Floor Mount |
| Enclosure Door Type | Solid |
| Component | Steel Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 12 |
| Manufacturer | Hoffman |
Features
Return flange around three sides of door and along top of enclosure opening channels away liquids and contaminants
Removable centerpost permits easy panel installation
Panel supports
Stainless steel door clamps on three sides of each door assure water-tight seal
Body stiffeners for added strength
Seams continuously welded and ground smooth
Heavy gauge continuous hinge with stainless steel hinge pin
Heavy-duty lifting eyes
12-in. floor stands bolted-on to enclosure
Data pocket is high-impact thermoplastic
Hasp and staple for padlock
Oil-resistant door gasket
Collar studs provided for mounting optional panels
Bonding provision on door
Provision for mounting fluorescent light
Grounding stud on body
