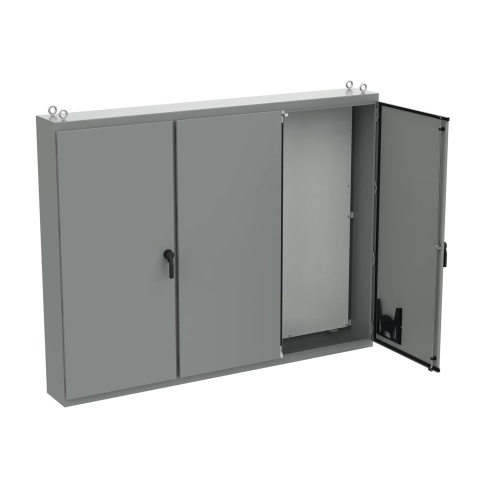

nVent Hoffman A86M3E20G Steel Enclosure 3 Door
$8,719$10,463 (-17%)
nVent Hoffman A86M3E20G Steel Enclosure 3 Door Freestanding Steel Multi-Door Enclosure Type 12 indoor available with three, four or five doors for housing larger control systems in industrial environments. Concealed easy to remove hinges, 3-point latch system with padlocking handle. Overlapping two door openings…
nVent Hoffman A86M3E20G Steel Enclosure 3 Door Freestanding Steel Multi-Door Enclosure Type 12 indoor available with three, four or five doors for housing larger control systems in industrial environments. Concealed easy to remove hinges, 3-point latch system with padlocking handle. Overlapping two door openings gasketed centerposts, mechanical interlocks with right hand master door. Doors have bonding provisions, stay in place gasket for tight seal and a data pocket. Heavy duty steel back stiffeners maintain flatness and increase rigidity. Studs for adding backplate for mounting equipment.
Specifications
| Enclosure Hinge Type | Standard Hinge |
|---|---|
| Enclosure Interior Color | White |
| Enclosure Lock Type | Padlocking |
| Enclosure Interior Color | Gray |
| Enclosure Depth | 20" |
| Enclosure Mount Type | Free-Standing |
| Enclosure Composition | Painted Steel |
| Enclosure Height | 86" |
| Enclosure Width | 112" |
| Enclosure Environment Rating | Indoor |
| Enclosure Door Type | Solid |
| Component | Steel Enclosure |
| Enclosure NEMA Rating | NEMA Type 12 |
| Enclosure Number of Doors | 3 Door |
| Manufacturer | Hoffman |
Features
At two-door openings, gasketed overlapping doors eliminate need for centerposts
Heavy-duty lifting eyes anchored into reinforced top
Overlapping, gasketed openings on two-door centerposts
Three-point latches operated by padlocking handle
Heavy steel back stiffeners maintain flatness and increase rigidity
Seams continuously welded and ground smooth, no holes or knockouts
Concealed, easy-to-remove hinges
Panel mounting studs
Oil-resistant door gasket
Large data pocket is high-impact thermoplastic
Mechanical interlock standard on each enclosure with right-hand door serving as master door, doors can be closed in any order
Bonding provision on doors
Provisions for mounting fluorescent lights
